264-4493-00-0602J - 3M

Description: 3M Textool 2.54mm Pitch Straight 64 Way, Through Hole ZIF IC Dip Socket, 1A

Download 264-4493-00-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
264-4493-00-0602J - 3M - PCB symbol
click to zoom
PCB Footprints

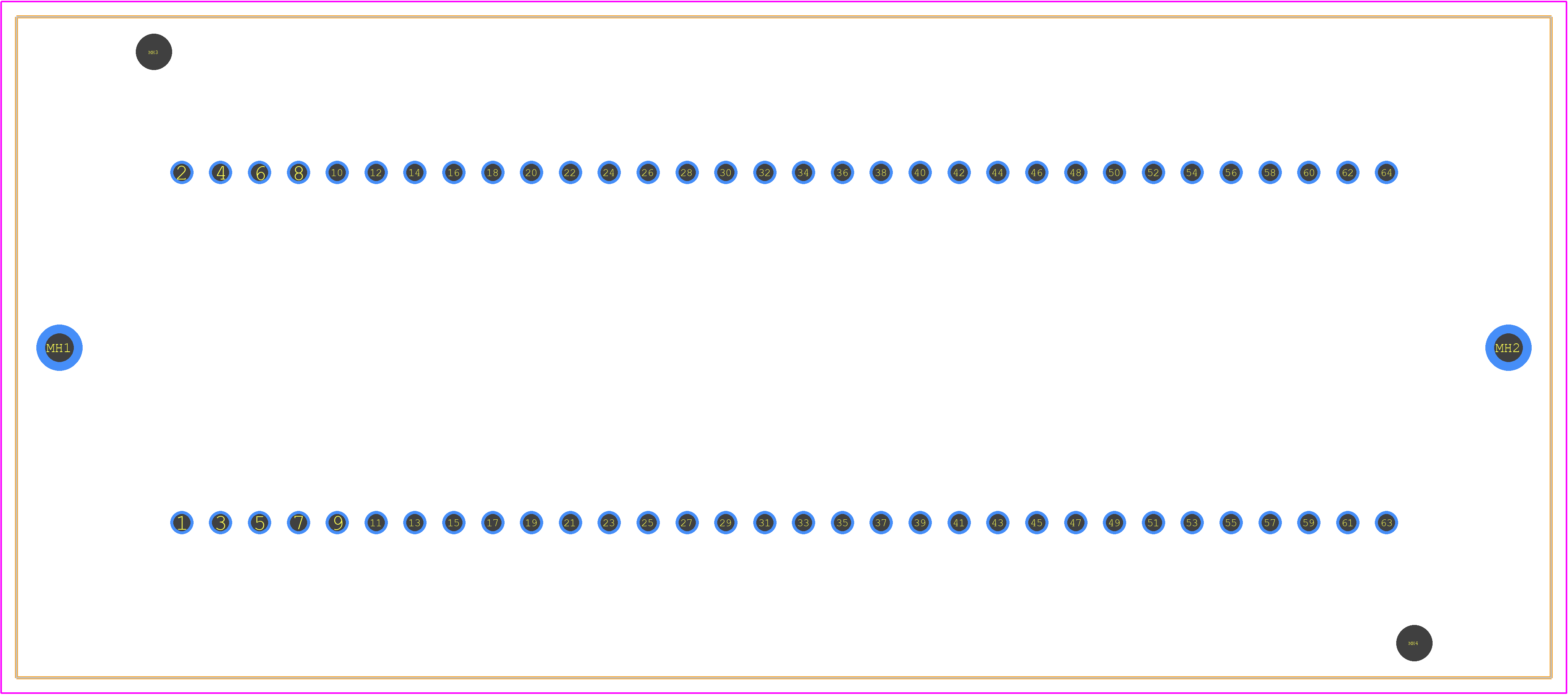

264-4493-00-0602J - 3M PCB footprint - Other - Other - 264-4493-00-0602J-5
click to zoom
3D Models
264-4493-00-0602J - 3M - 3D model - Other - 264-4493-00-0602J-5
click to zoom

264-4493-00-0602J Details

  • Manufacturer Part Number:

    264-4493-00-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP64

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    64

264-4493-00-0602J Frequently Asked Questions (FAQs)

  • The operating temperature range of the 264-4493-00-0602J connector is -55°C to 125°C.
  • Yes, the 264-4493-00-0602J connector is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The mating cycle life of the 264-4493-00-0602J connector is 500 cycles minimum, depending on the application and environmental conditions.
  • Yes, the 264-4493-00-0602J connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, defense, and industrial equipment.
  • Yes, the 264-4493-00-0602J connector is designed to be compatible with other 3M Interconnect products, including cable assemblies and PCB connectors, to provide a complete interconnect solution.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

264-4493-00-0602J Overview

Use the download button to access the 264-4493-00-0602J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 264-4, or try a keyword search, such as Sockets and Chip Carriers
