2706-302 - Wago

Description: PCB terminal block; lever; 6 mm²; Pin spacing 12.5 mm; 2-pole; CAGE CLAMP®

Download 2706-302 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2706-302 - Wago - PCB symbol
click to zoom
PCB Footprints

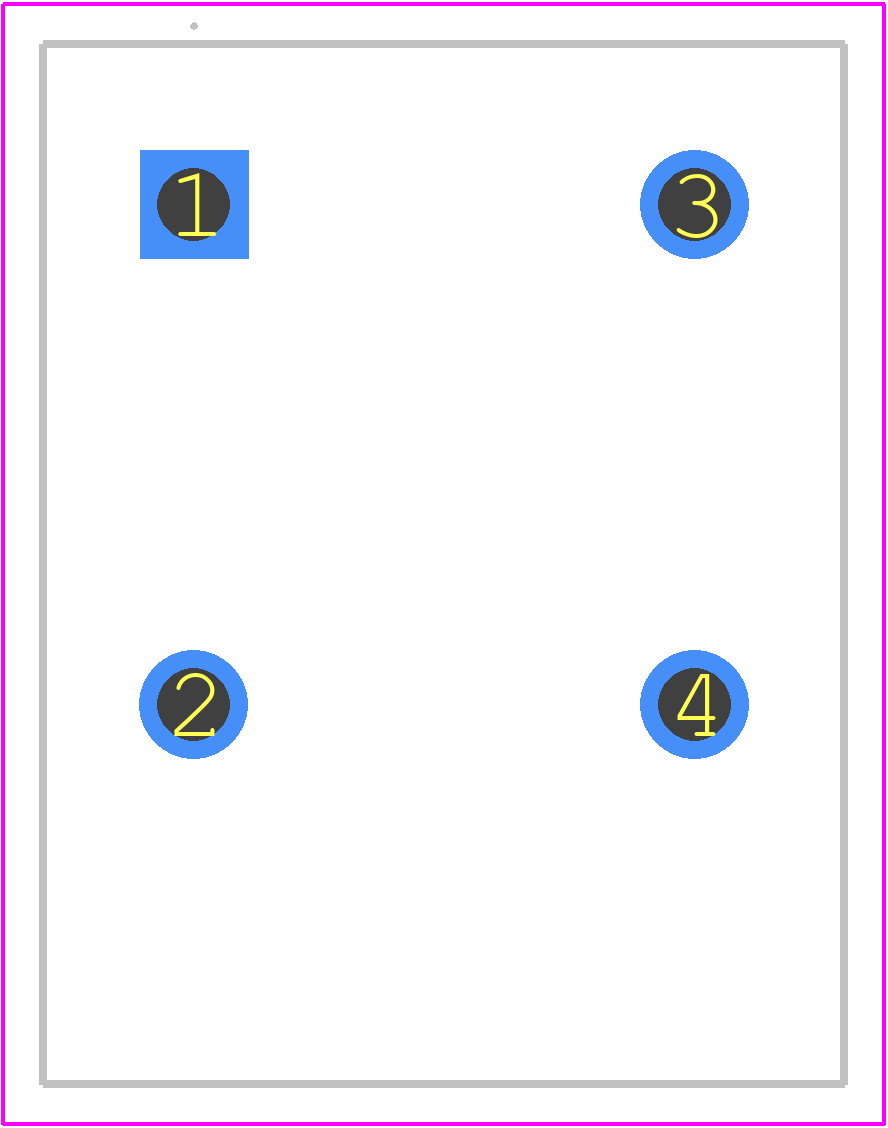

2706-302 - Wago PCB footprint - Other - Other - 2706-302-2
click to zoom
3D Models
2706-302 - Wago - 3D model - Other - 2706-302-2
click to zoom

2706-302 Details

  • Manufacturer Part Number:

    2706-302

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2706-302 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 2706-302 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 2706-302 is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • Yes, the 2706-302 is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 2706-302 is -40°C to 125°C (-40°F to 257°F).
