2716-102 - Wago

Description: WAGO - 2716-102 - TB, WIRE TO BOARD, 2POS, 16-6AWG, GREY

Download 2716-102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2716-102 - Wago - PCB symbol
click to zoom
PCB Footprints

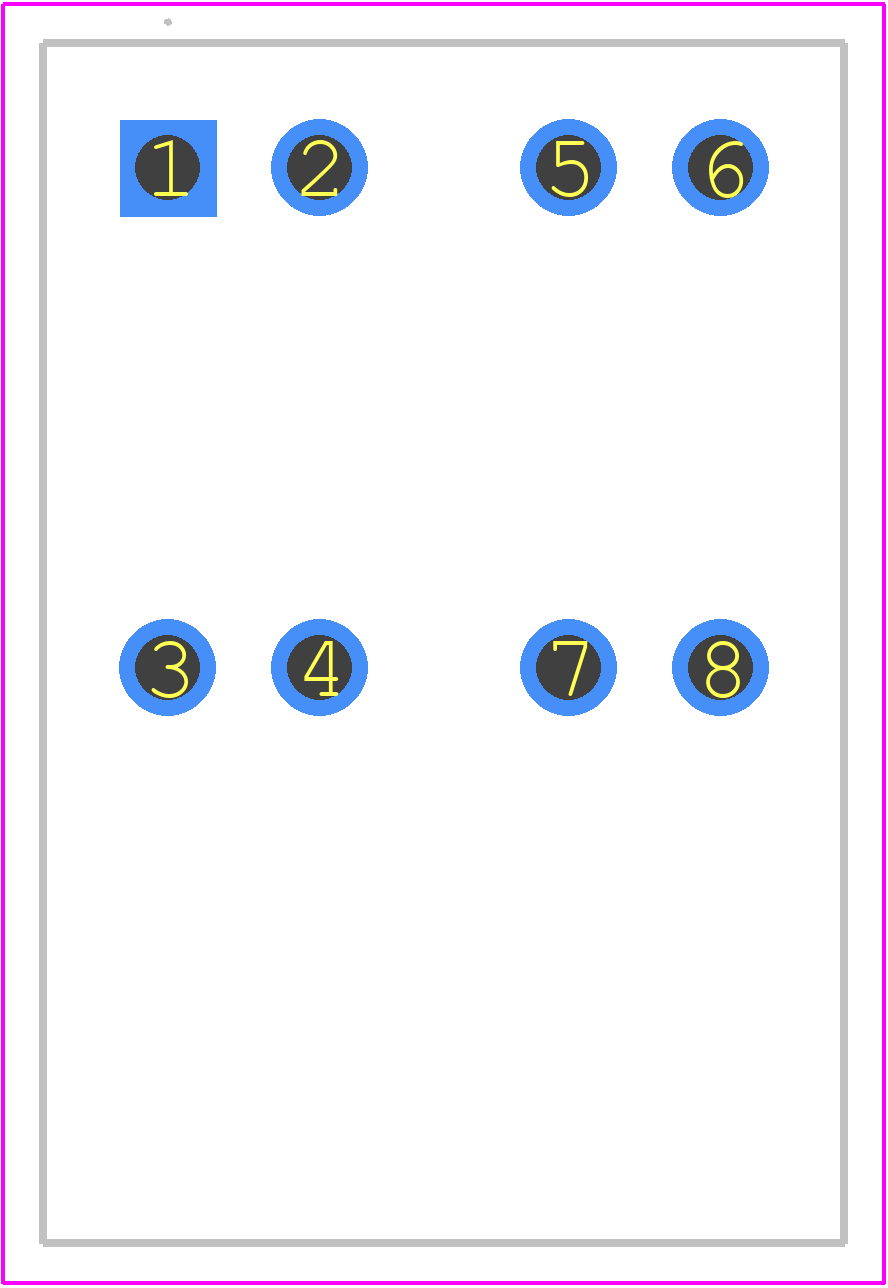

2716-102 - Wago PCB footprint - Other - Other - 2716-102-4
click to zoom
3D Models
2716-102 - Wago - 3D model - Other - 2716-102-4
click to zoom

2716-102 Details

  • Manufacturer Part Number:

    2716-102

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    76 A

  • Rated Voltage:

    4000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

2716-102 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 2716-102 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 2716-102 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2716-102 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The operating temperature range for the 2716-102 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2716-102 connector is designed for use in industrial automation systems, including PLCs, HMIs, and other control systems.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2716-102 Overview

Use the download button to access the 2716-102 schematic symbol, PCB footprint, and 3D model.
