2716-105 - Wago

Description: WAGO - 2716-105 - Wire-To-Board Terminal Block, 10 mm, 5 Ways, 16 AWG, 6 AWG, 16 mm², Push In

Download 2716-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

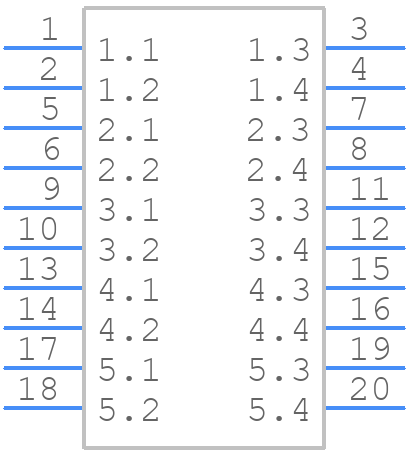

2716-105 - Wago - PCB symbol
click to zoom
PCB Footprints

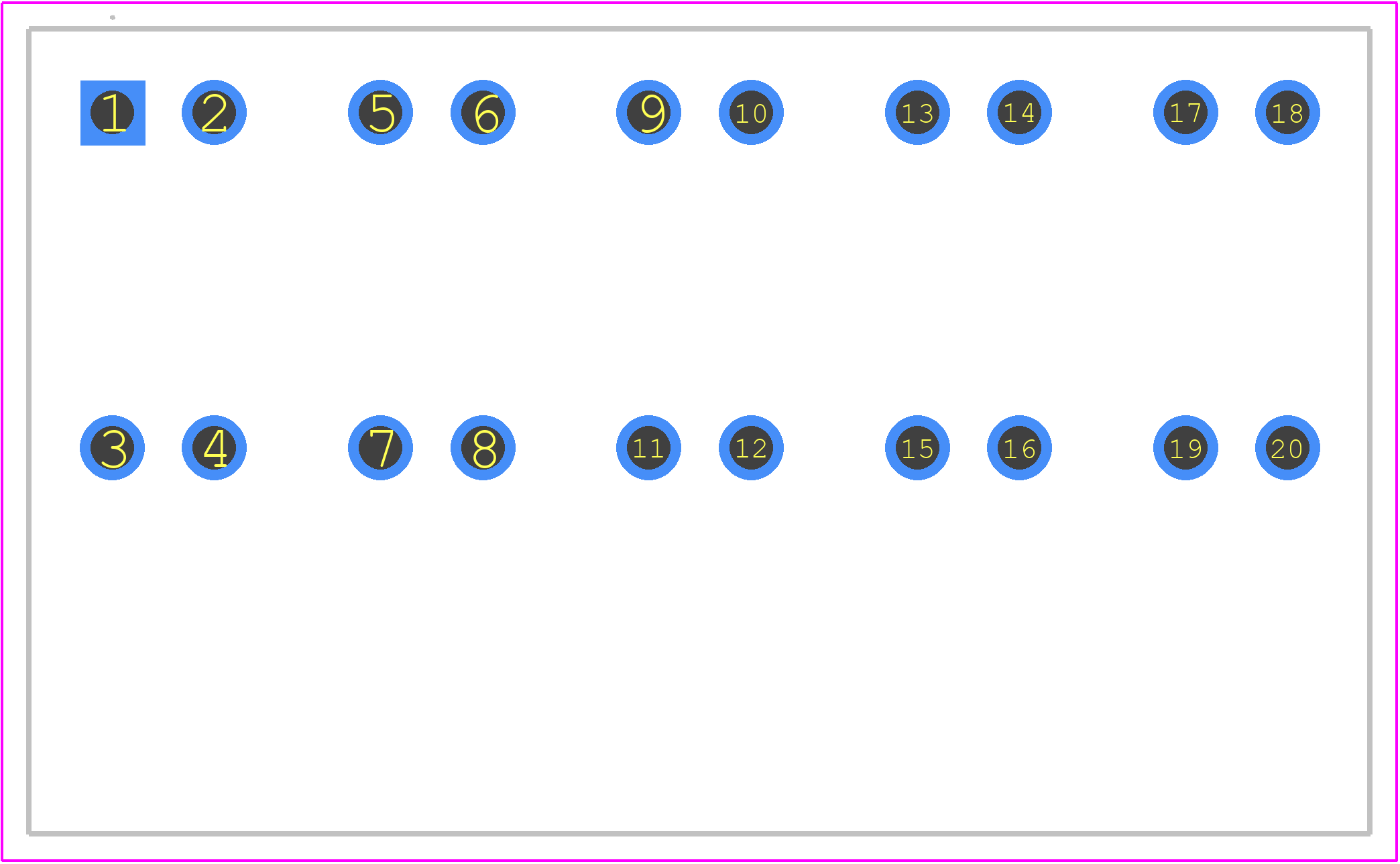

2716-105 - Wago PCB footprint - Other - Other - 2716-105-1
click to zoom
3D Models
2716-105 - Wago - 3D model - Other - 2716-105-1
click to zoom

2716-105 Details

  • Manufacturer Part Number:

    2716-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    76 A

  • Rated Voltage:

    4000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

2716-105 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure reliable connections.
  • Yes, the 2716-105 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2716-105 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • The maximum operating temperature range for the 2716-105 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 2716-105 connector meets the requirements of UL 1977 and IEC 61984 standards for connectors, ensuring compliance with industry regulations.
