The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the M3 screws, as specified in the WAGO installation instructions.
Yes, the 2716-106 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial automation or transportation systems.
Yes, the 2716-106 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use or in harsh environments. However, it's essential to follow the recommended installation and sealing procedures to maintain the IP67 rating.
While the 2716-106 connector is designed for use with AWG 24-18 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with WAGO's technical support or a qualified engineer to ensure the connector's performance and reliability are not compromised.
Yes, the 2716-106 connector is part of WAGO's TOPJOB S system and is designed to be compatible with other WAGO products and systems, including their terminal blocks, connectors, and interfaces.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2716-106 Overview

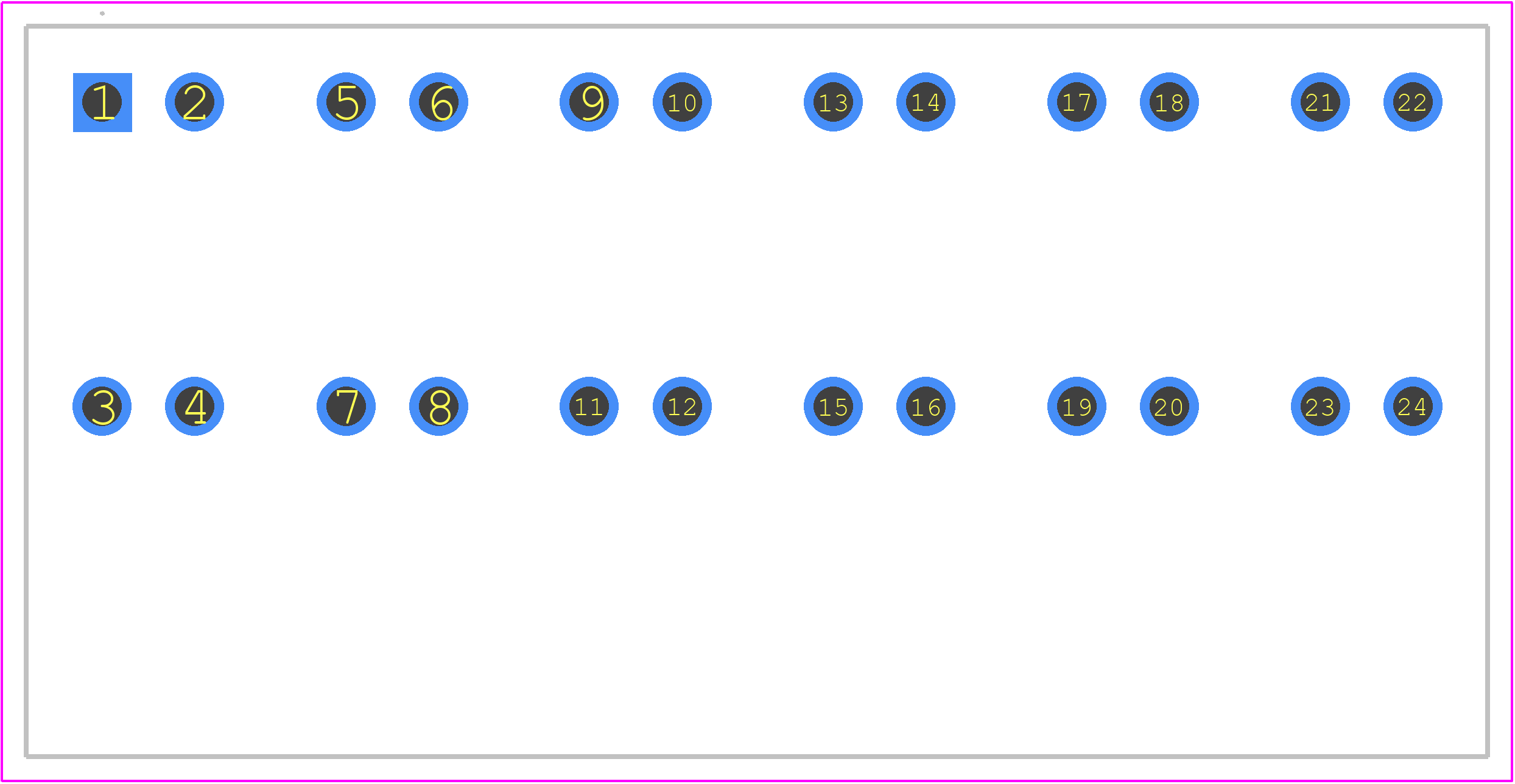

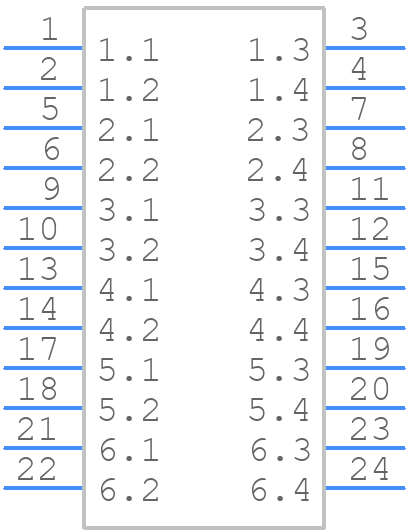

Use the download button to access the 2716-106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-,
or try a keyword search, such as Terminals and Terminal Blocks
