2716-202 - Wago

Description: WAGO - 2716-202 - Wire-To-Board Terminal Block, 15 mm, 2 Ways, 16 AWG, 6 AWG, 16 mm², Clamp

Download 2716-202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2716-202 - Wago - PCB symbol
click to zoom
PCB Footprints

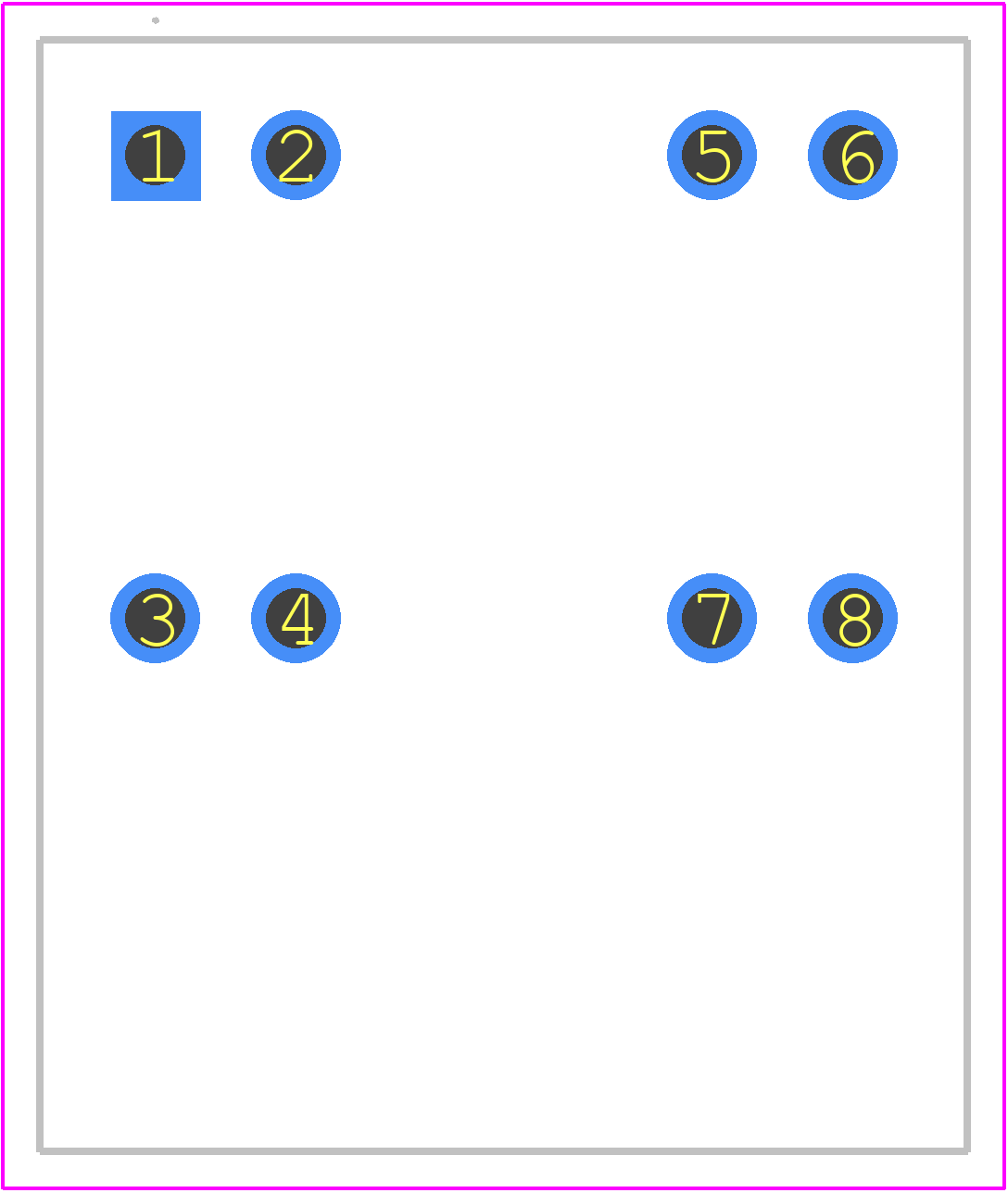

2716-202 - Wago PCB footprint - Other - Other - 2716-202-1
click to zoom
3D Models
2716-202 - Wago - 3D model - Other - 2716-202-1
click to zoom

2716-202 Details

  • Manufacturer Part Number:

    2716-202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    76 A

  • Rated Voltage:

    8000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

2716-202 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure secure connections.
  • Yes, the 2716-202 connector is designed to withstand high-vibration environments. However, it's essential to follow proper installation and torque guidelines to ensure reliable connections.
  • The 2716-202 connector has a rating of IP20, which means it's protected against solid objects larger than 12.5 mm, but it's not fully sealed against moisture. For outdoor use, consider using additional protective measures, such as conformal coatings or enclosures, to ensure reliability.
  • Yes, the 2716-202 connector is compatible with stranded wires. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
  • The 2716-202 connector is designed to operate within a temperature range of -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2716-202 Overview

Use the download button to access the 2716-202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-, or try a keyword search, such as Terminals and Terminal Blocks
