2716-203 - Wago

Description: PCB terminal block, operating lever, 16 mm2, Pin spacing 15 mm, 3-pole

Download 2716-203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

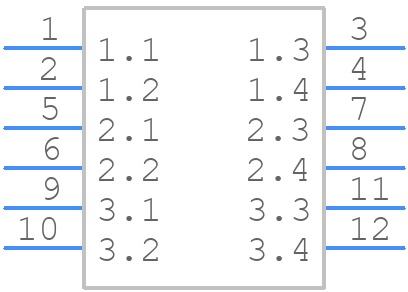

2716-203 - Wago - PCB symbol
click to zoom
PCB Footprints

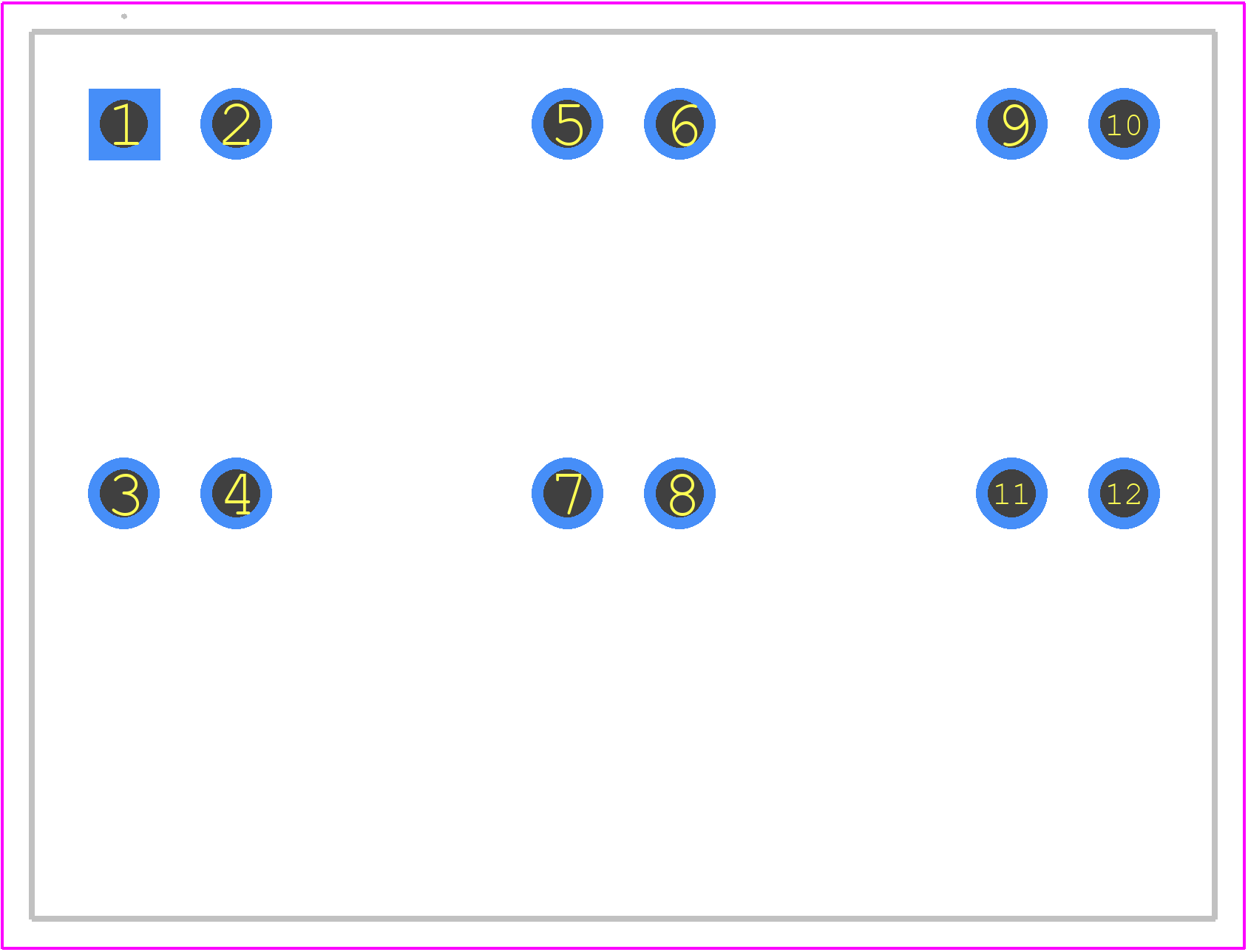

2716-203 - Wago PCB footprint - Other - Other - 2716-203-3
click to zoom
3D Models
2716-203 - Wago - 3D model - Other - 2716-203-3
click to zoom

2716-203 Details

  • Manufacturer Part Number:

    2716-203

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    76 A

  • Rated Voltage:

    8000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

2716-203 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 2716-203 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 2716-203 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2716-203 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The 2716-203 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 2716-203 connector is compatible with various automation protocols, including PROFINET, EtherNet/IP, and others, making it suitable for use in industrial automation applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2716-203 Overview

Use the download button to access the 2716-203 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-, or try a keyword search, such as Terminals and Terminal Blocks
