The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
Yes, the 2716-253 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
Yes, the 2716-253 connector is rated IP67, making it suitable for outdoor use and protected against temporary immersion in water.
The maximum operating temperature range for the 2716-253 connector is -40°C to 125°C (-40°F to 257°F).
Yes, the 2716-253 connector is suitable for use with stranded wire, but it's recommended to use a wire ferrule to ensure secure connections.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2716-253 Overview

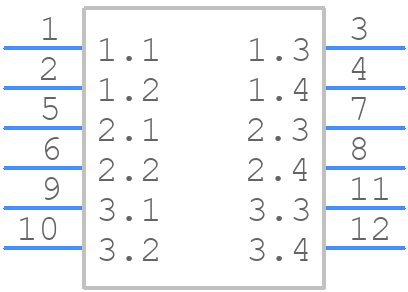

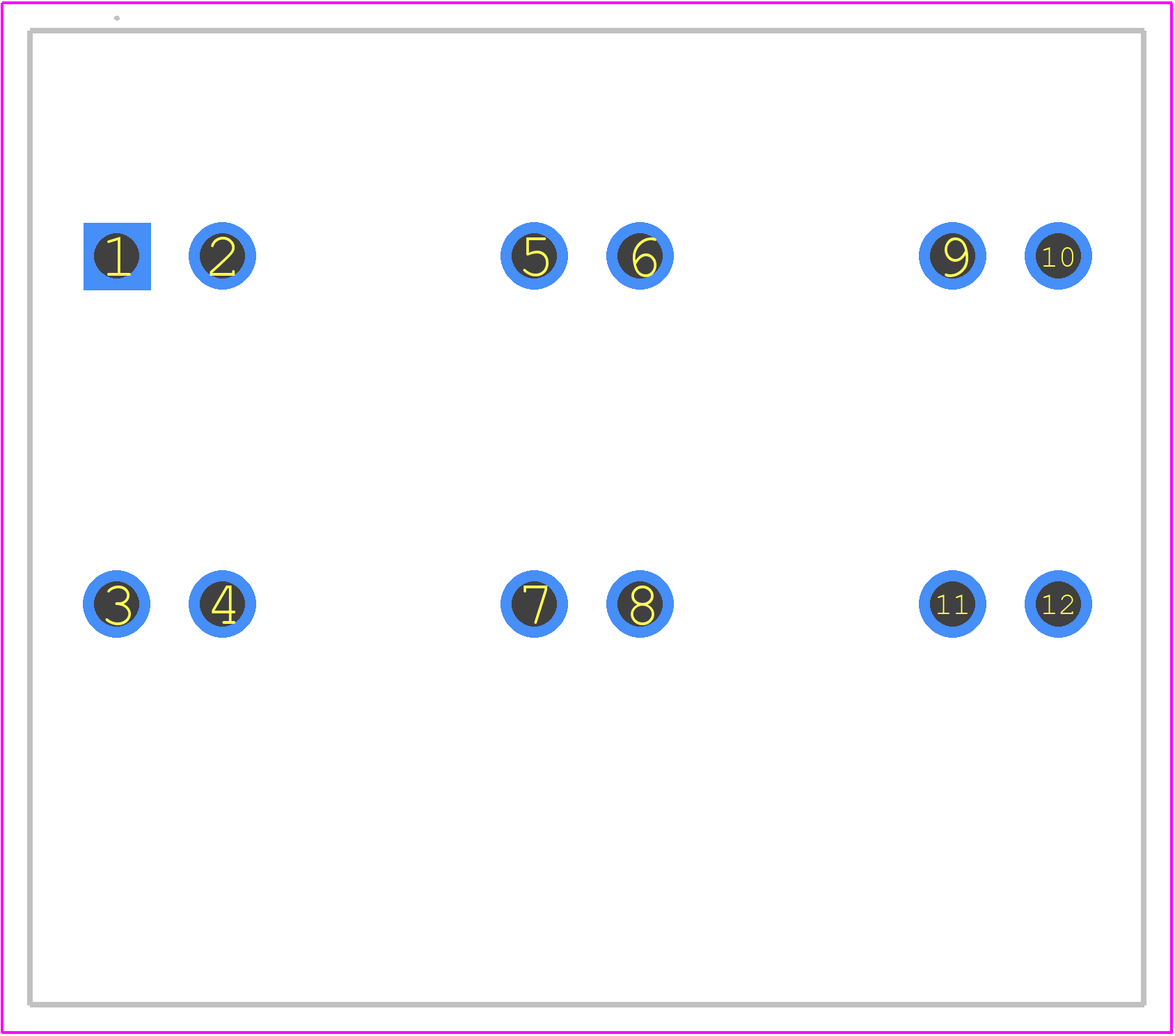

Use the download button to access the 2716-253 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-,
or try a keyword search, such as Terminals and Terminal Blocks
