The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
Yes, the 2716-256 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6.
Yes, the 2716-256 is certified for use in hazardous locations, including Class I, Division 2, and Zone 2 areas.
The maximum wire size that can be connected to the 2716-256 is 2.5 mm² (AWG 14).
Yes, the 2716-256 is designed to operate in humid or wet environments, with an IP67 rating for protection against ingress of water and dust.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2716-256 Overview

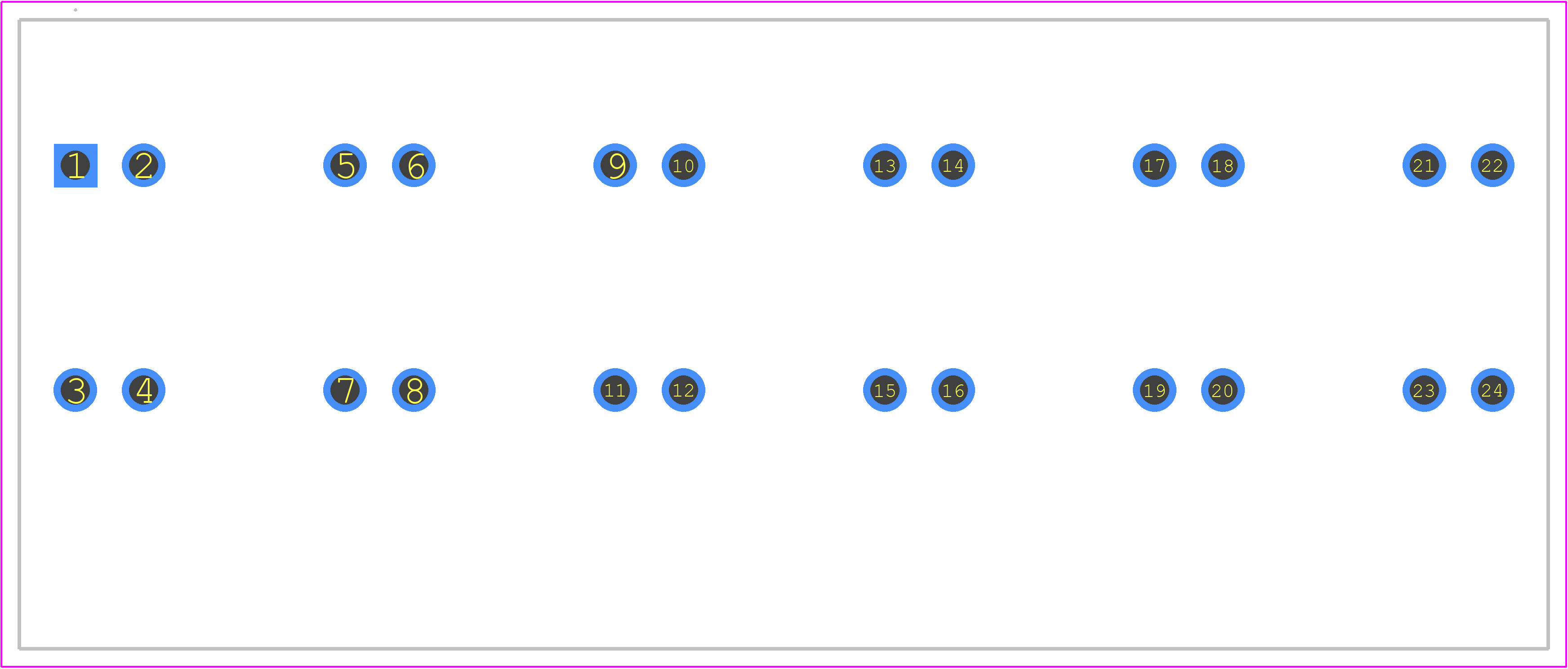

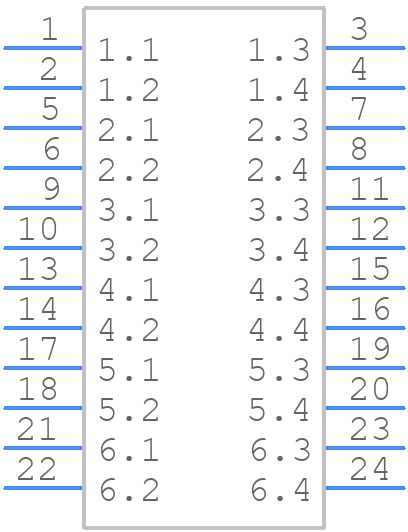

Use the download button to access the 2716-256 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-,
or try a keyword search, such as Terminals and Terminal Blocks
