The recommended land pattern for the 278-20.0M-20-W-TR can be found in the Abracon Corporation's application note AN-04, which provides guidelines for PCB layout and land pattern design.
To ensure reliable startup, make sure to follow the recommended power-up sequence, provide a stable power supply, and ensure the oscillator is properly terminated. Additionally, consider adding a startup circuit or a reset signal to the oscillator input.
The 278-20.0M-20-W-TR has an operating temperature range of -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the oscillator's frequency stability and accuracy may be affected at extreme temperatures.
The 278-20.0M-20-W-TR is designed to meet the requirements of various industrial and commercial applications. However, for high-vibration or high-shock environments, it's recommended to consult with Abracon Corporation's application engineers to determine the oscillator's suitability and potential modifications required.
The 278-20.0M-20-W-TR has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Additionally, consider adding external ESD protection devices or circuits to ensure the oscillator's reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
278-20.0M-20-W-TR Overview

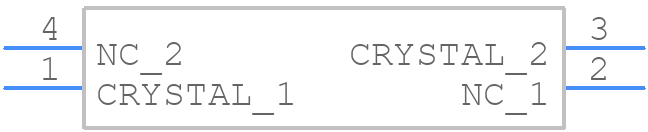

Use the download button to access the 278-20.0M-20-W-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 278-2,
or try a keyword search, such as Quartz Crystals
