27E305 - TE Connectivity

Description: Printed Circuit Board, Nylon, Board Mount, Socket, Potter & Brumfield KUP, Relay Accessories, 15A, 300VAC

Download 27E305 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
27E305 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

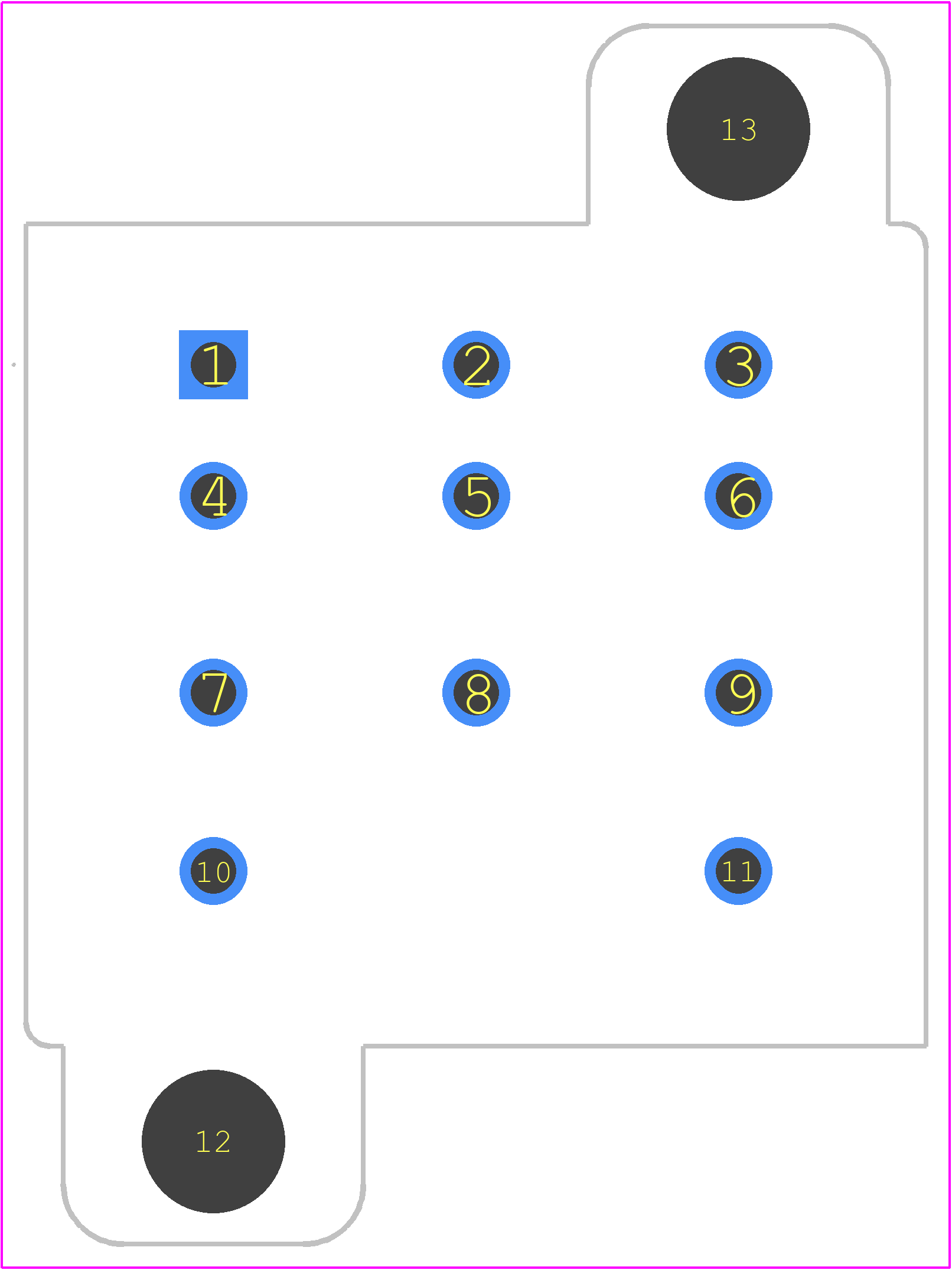

27E305 - TE Connectivity PCB footprint - Other - Other - 27E305-3
click to zoom
3D Models
27E305 - TE Connectivity - 3D model - Other - 27E305-3
click to zoom

27E305 Details

  • Manufacturer Part Number:

    27E305

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    NYLON

  • Number of Contacts:

    11

  • Termination Type:

    SOLDER

27E305 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the 27E305 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and screw torque.
  • To ensure reliable connections, make sure to follow the recommended wire stripping and termination procedures, and apply the correct amount of torque to the screw terminals.
  • Yes, the 27E305 meets the requirements for automotive applications, including temperature range, vibration, and environmental testing.
  • The 27E305 is designed to operate in a wide temperature range (-40°C to 125°C) and can withstand high humidity, but it's recommended to follow the manufacturer's guidelines for environmental testing and ensure proper sealing and protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

27E305 Overview

Use the download button to access the 27E305 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 27E30, or try a keyword search, such as Sockets and Chip Carriers
