27E342 - TE Connectivity

Description: Relay Socket, Through Hole, Through Hole, 2 Pins, 10 A, R10 Series

Download 27E342 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
27E342 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

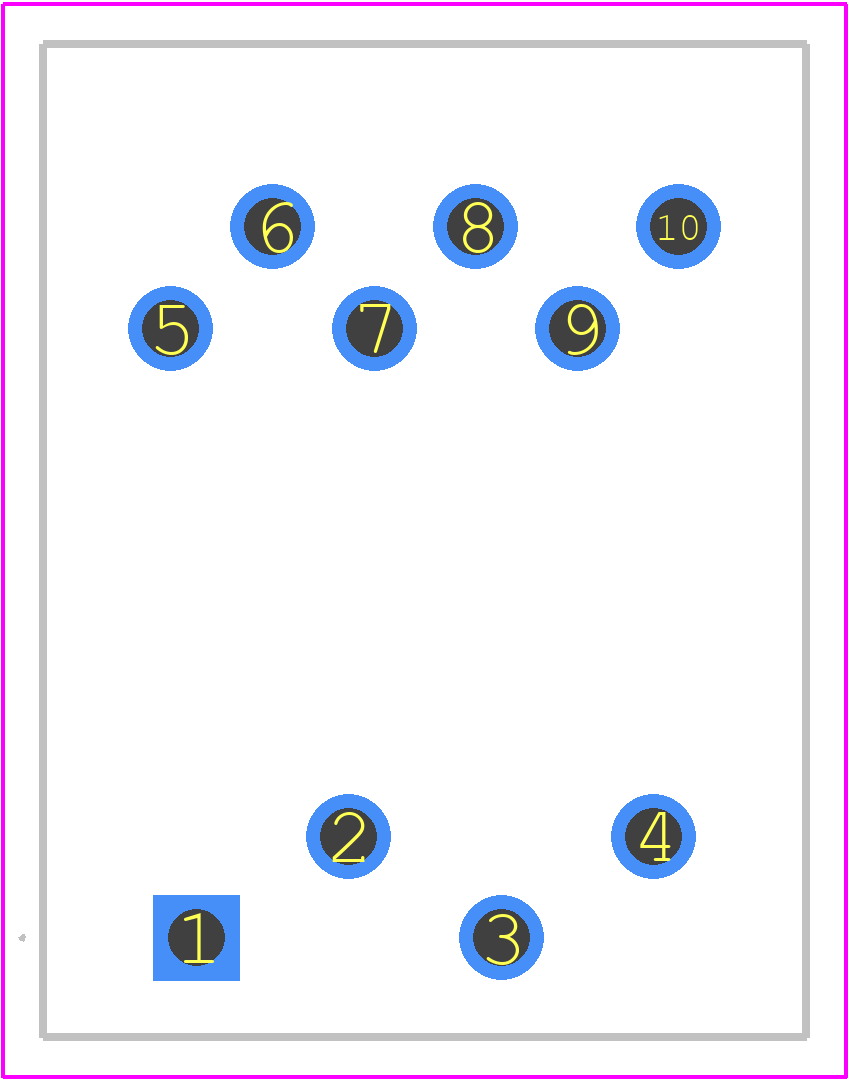

27E342 - TE Connectivity PCB footprint - Other - Other - 27E342-5
click to zoom
3D Models
27E342 - TE Connectivity - 3D model - Other - 27E342-5
click to zoom

27E342 Details

  • Manufacturer Part Number:

    27E342

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    POLYESTER

  • Number of Contacts:

    10

  • Termination Type:

    SOLDER
