27E489 - TE Connectivity

Description: Body Features: Body Material Nylon | Contact Features: Pole Configuration 2 | Relay Socket Type Printed Circuit Board | Contact Plating Material Tin | Contact Base Material Spring Brass | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Mounting Feature Type Tab | Product Type Features: Relay Accessory Type Socket | Terminal Configuration PC | Termination Features: Number of Pins 8 | Termination Post & Tail Length .184 INCH | Termination Post & Tail Length 21.44 MM |

Download 27E489 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
27E489 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

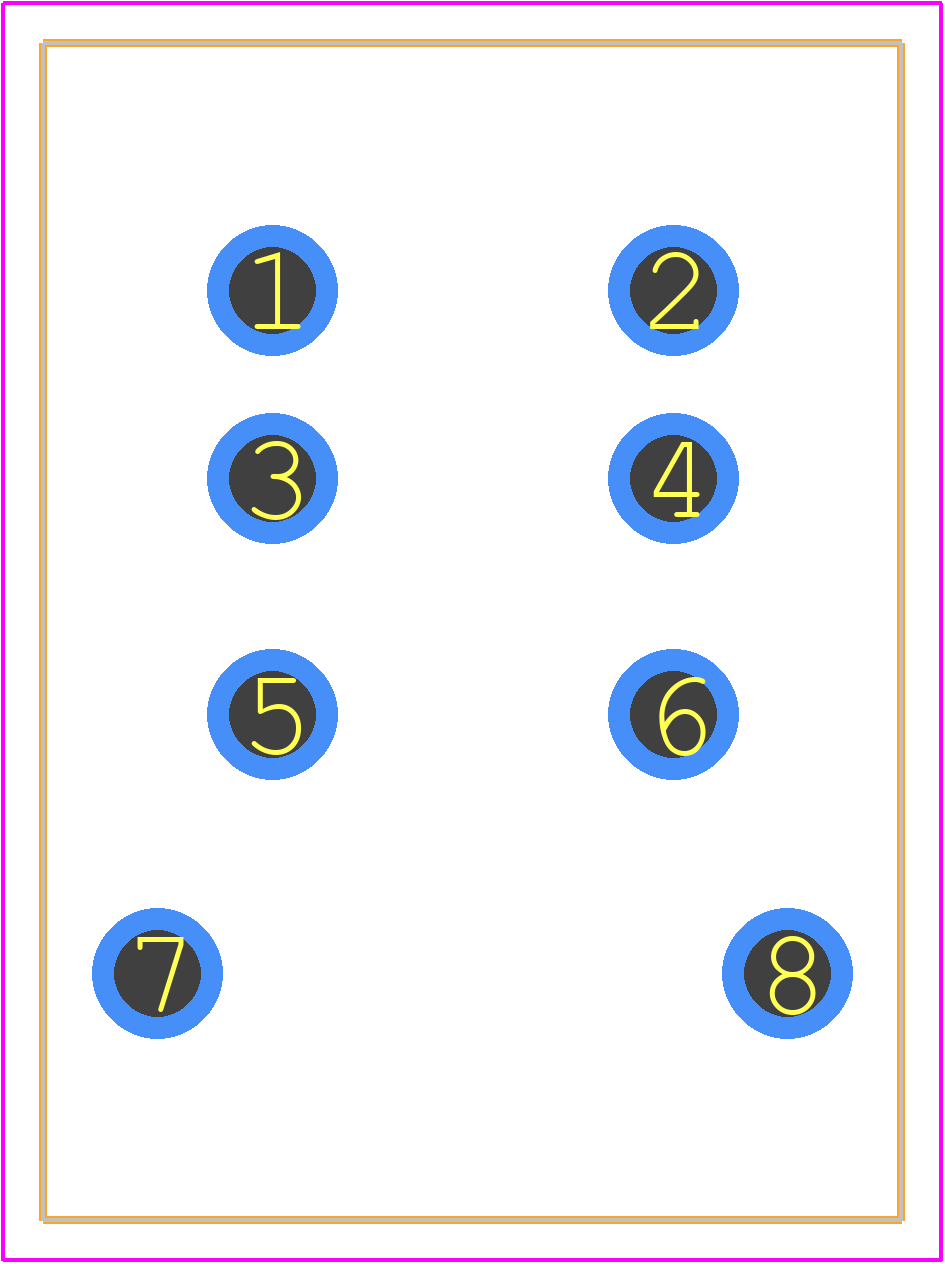

27E489 - TE Connectivity PCB footprint - Other - Other - 27E489-3
click to zoom
3D Models
27E489 - TE Connectivity - 3D model - Other - 27E489-3
click to zoom

27E489 Details

  • Manufacturer Part Number:

    27E489

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    NYLON

  • Number of Contacts:

    8

  • Termination Type:

    SOLDER

27E489 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw locks on the 27E489 connector.
  • Yes, the 27E489 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with a TE Connectivity representative for specific application guidance.
  • The maximum operating temperature for the 27E489 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The 27E489 connector is designed to operate in harsh environments, but it's recommended to follow TE Connectivity's guidelines for environmental testing and to consult with a TE Connectivity representative for specific application guidance.
  • The recommended mating and unmating cycle life for the 27E489 connector is 500 cycles, but this can vary depending on the specific application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

27E489 Overview

Use the download button to access the 27E489 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 27E48, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
