28-6554-11 - ARIES

Description: Aries Electronics 2.54mm Pitch 28 Way Through Hole Universal ZIF Test Socket

Download 28-6554-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
28-6554-11 - ARIES - PCB symbol
click to zoom
PCB Footprints

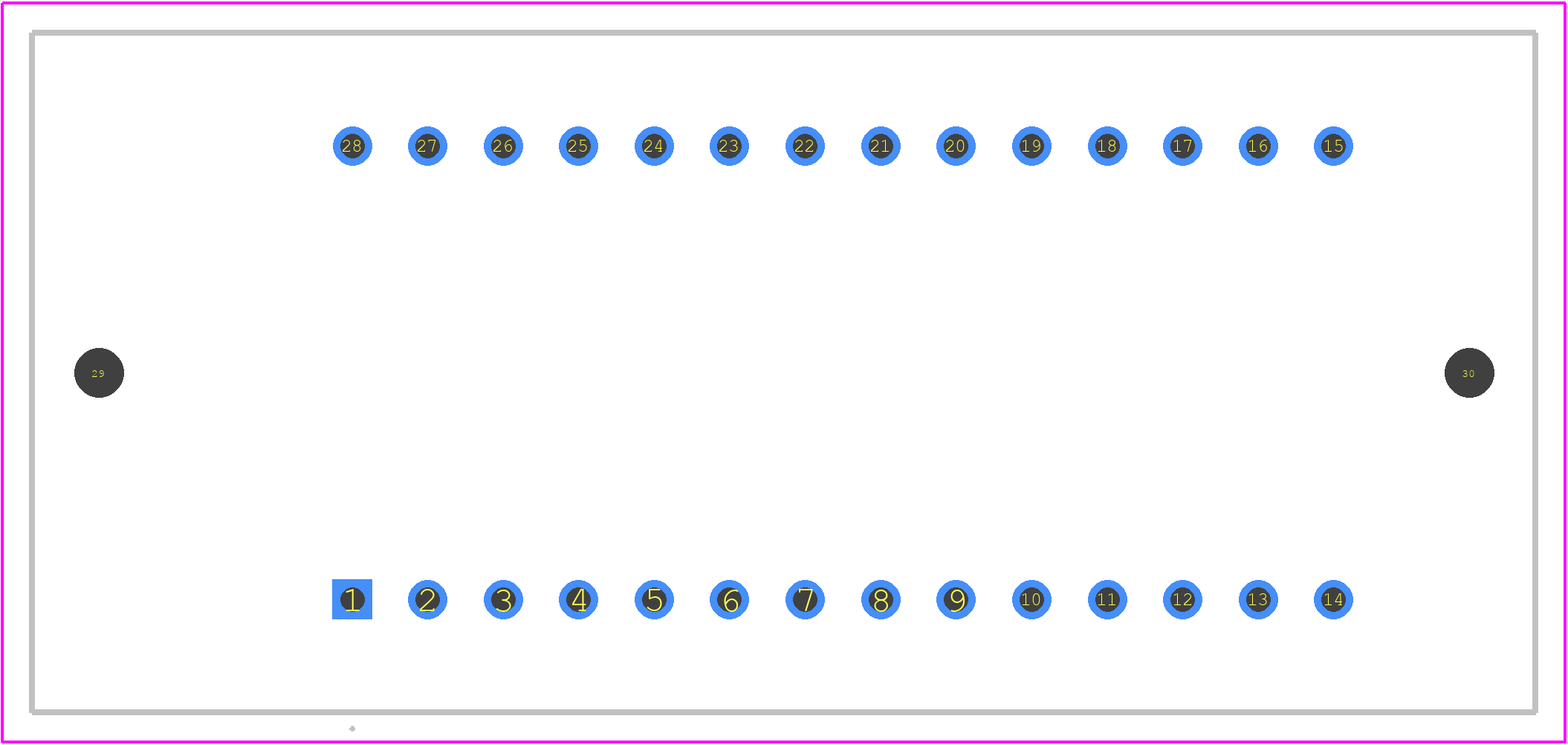

28-6554-11 - ARIES PCB footprint - Other - Other - DIP-28_2025
click to zoom
3D Models
28-6554-11 - ARIES - 3D model - Other - DIP-28_2025
click to zoom

28-6554-11 Details

  • Manufacturer Part Number:

    28-6554-11

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.9 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    1.99 inch

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    150 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

28-6554-11 Frequently Asked Questions (FAQs)

  • The recommended torque is 6-8 in-lbs (0.7-0.9 Nm) for the screws on the 28-6554-11 connector.
  • Yes, the 28-6554-11 connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, industrial, and automotive.
  • Yes, the 28-6554-11 connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended operating conditions and environmental specifications outlined in the datasheet.
  • The 28-6554-11 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • The 28-6554-11 connector is designed to be compatible with other connectors that meet the same industry standards, such as MIL-DTL-55302. However, it's essential to verify compatibility with the specific connector model and manufacturer before use.
