280-5205-01 footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

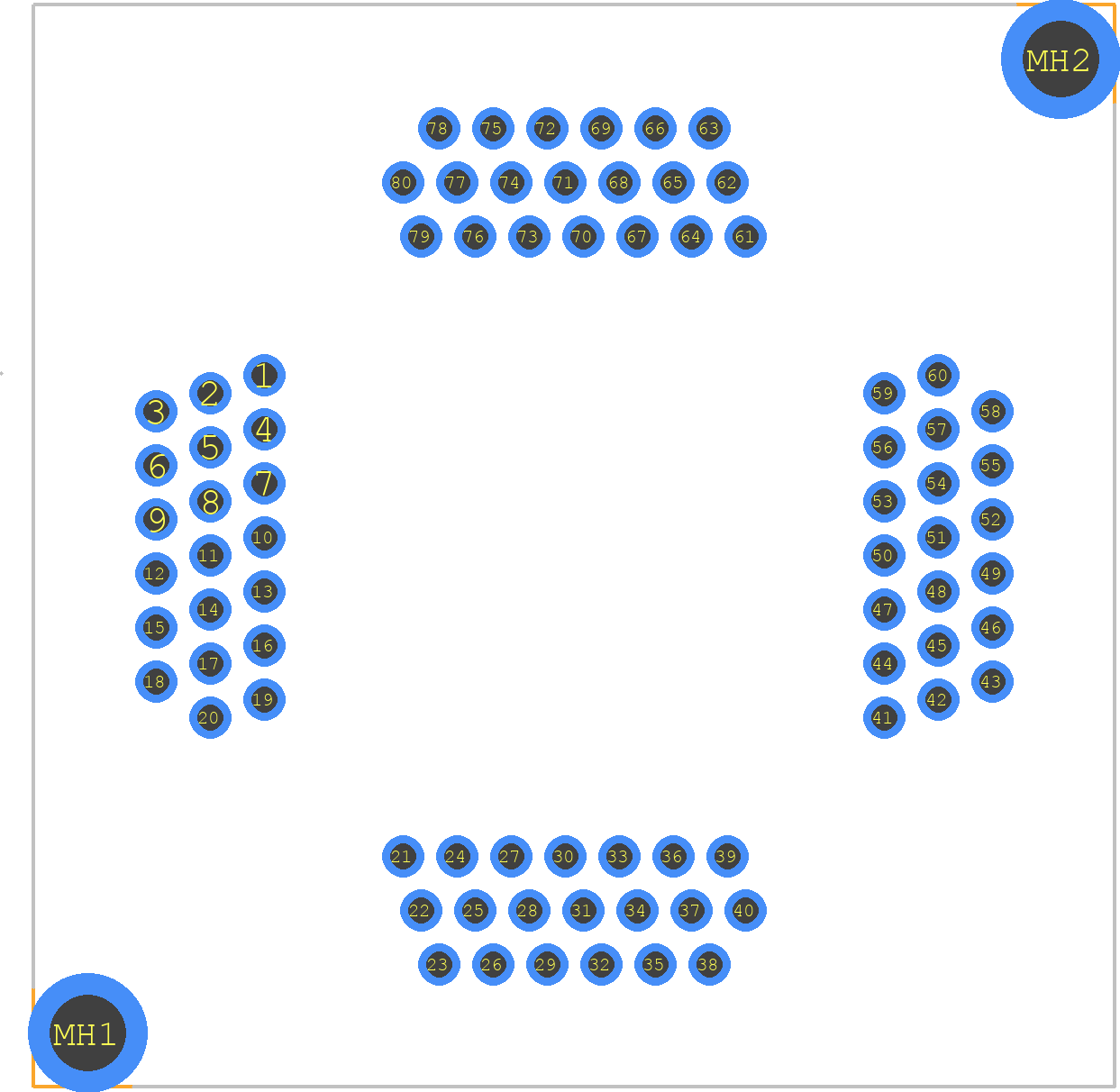

280-5205-01 - 3M PCB footprint - Other - Other - 280-5205-01

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 280-5205-01
Part Number 280-5205-01
Manufacturer 3M
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - 280-5205-01
Released Date Dec 23, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

280-5205-01 Details

Manufacturer Part Number:
280-5205-01
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
15 Weeks, 6 Days
Manufacturer:
3M Interconnect
Body Breadth:
1.181 inch
Body Depth:
0.669 inch
Body Length:
1.181 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
Contact Style:
BELLOWED TYPE
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP80
Housing Material:
POLYPHENYLENE SULFIDE
Mounting Style:
STRAIGHT
Number of Contacts:
80
PCB Contact Pattern:
MIXED
PCB Contact Row Spacing:
0.05905511811023623 mm
Terminal Pitch:
1.5 mm
Termination Type:
SOLDER

280-5205-01 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 280-5205-01 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's recommended to consult with 3M Interconnect or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The operating temperature range for the 280-5205-01 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this temperature range to maintain its performance and reliability.
The 280-5205-01 connector has a sealed construction and is designed to meet IP67 standards, making it suitable for outdoor or harsh environmental applications. However, it's recommended to consult with 3M Interconnect or a qualified engineer to ensure the connector meets the specific environmental requirements of your application.
While the 280-5205-01 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with 3M Interconnect or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's performance requirements.

Trust Checks

Expert Contribution

System Verified

Community Approved

280-5205-01 Overview

Use the download button to access the 280-5205-01 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 280-5, or try a keyword search, such as Sockets and Chip Carriers
