- Part Number 280380-1
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box

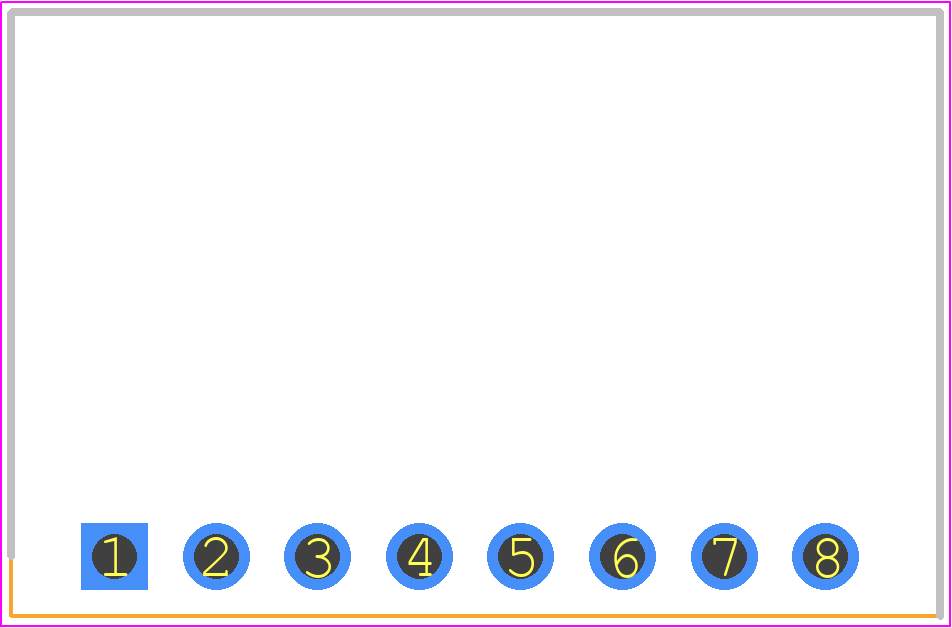

- Footprint Name Header, Shrouded - Right Angle PTH Box - 280380-1
- Released Date Jun 12, 2017
- Last Modified Date Jan 8, 2025 3:47 PM UTC
- Pinout / Pin List Click Here (Member Only)
280380-1 Details
-
Manufacturer Part Number:
280380-1
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
27 Weeks, 3 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
9.1
-
Additional Feature:
SHROUDED
280380-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 280380-1 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque value to maintain reliable connections.
-
The 280380-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and that the cable is also rated for outdoor use to maintain the overall system's environmental resistance.
-
While the datasheet specifies a particular wire gauge, it's possible to use a different gauge wire with the 280380-1 connector. However, it's crucial to ensure that the wire gauge is compatible with the connector's terminal size and that the wire is properly stripped and terminated to maintain reliable connections.
-
To ensure reliable connections with the 280380-1 connector, follow proper termination techniques, use the recommended torque value for the screw terminals, and ensure that the wire is properly stripped and seated in the terminal. Additionally, consider using a wire dressing or strain relief to prevent wire damage and ensure a secure connection.
