282834-9 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Green | Configuration Features: Stacked Levels Without | Number of Positions 9 | Stacking Configuration Side Stackable | Wire Entry Location Side | Number of Rows 1 | Wire Entry Angle 90° | Contact Features: Contact Current Rating (Max) 10 AMP | Contact Base Material Brass | Contact Mating Area Plating Material Tin | Dimensions: Wire Size .05 – 1.3 MMSQ | Wire Size 30 – 16 AWG | Electrical Characteristics: Operating Voltage 150 VAC | H

Download 282834-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
282834-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

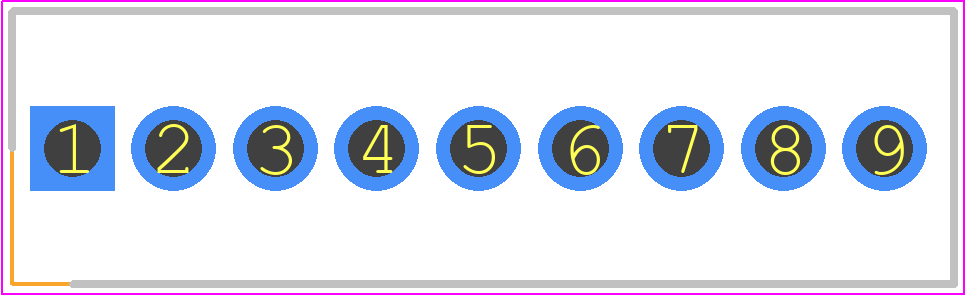

282834-9 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 282834-9
click to zoom
3D Models
282834-9 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 282834-9
click to zoom

282834-9 Details

  • Manufacturer Part Number:

    282834-9

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.75

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.3 mm2

  • Wire Gauge:

    16 AWG

282834-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 282834-9 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 1.5-2.5 Nm (13.3-22.1 in-lbs) for the jack screws.
  • Yes, the 282834-9 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 282834-9 connector is designed for use in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and IP67 sealing rating for protection against dust and water ingress.
  • The 282834-9 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 282834-9 connector is part of the TE Connectivity DEUTSCH DT series, which offers a wide range of compatible connectors, contacts, and accessories for various applications.
