282837-8 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Stacking Configuration Side Stackable | Number of Rows 1 | Number of Positions 8 | Wire Entry Location Side | Wire Entry Angle 90° | Stacked Levels Without | Contact Features: Contact Current Rating (Max) 13.5 AMP | Contact Base Material Brass | Contact Mating Area Plating Material Tin | Dimensions: Wire Size .05 – 1.3 MMSQ | Wire Size 30 – 16 AWG | Electrical Characteristics: Operating Voltage 300 VAC |

Download 282837-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
282837-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

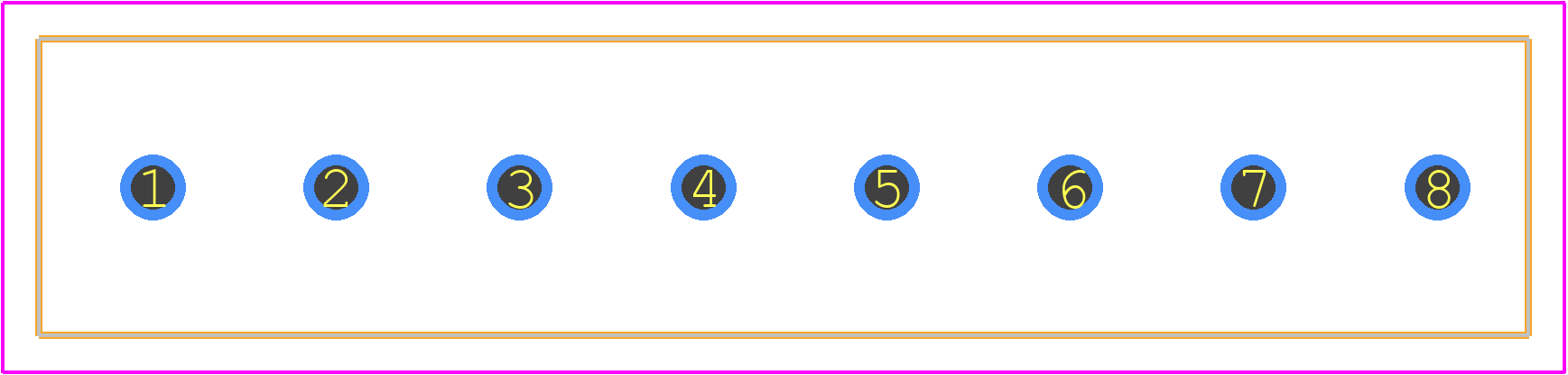

282837-8 - TE Connectivity PCB footprint - Other - Other - 282837-8-1
click to zoom
3D Models
282837-8 - TE Connectivity - 3D model - Other - 282837-8-1
click to zoom

282837-8 Details

  • Manufacturer Part Number:

    282837-8

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: IEC 998-1/998-2-1, PA 6-6, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    13.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.3 mm2

  • Wire Gauge:

    16 AWG
