2828405-1 - TE Connectivity

Description: Automotive Connectors ASY SKTMODULE, 16-02 PCB STRAIGHT, STD

Download 2828405-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2828405-1 - TE Connectivity - PCB symbol
click to zoom

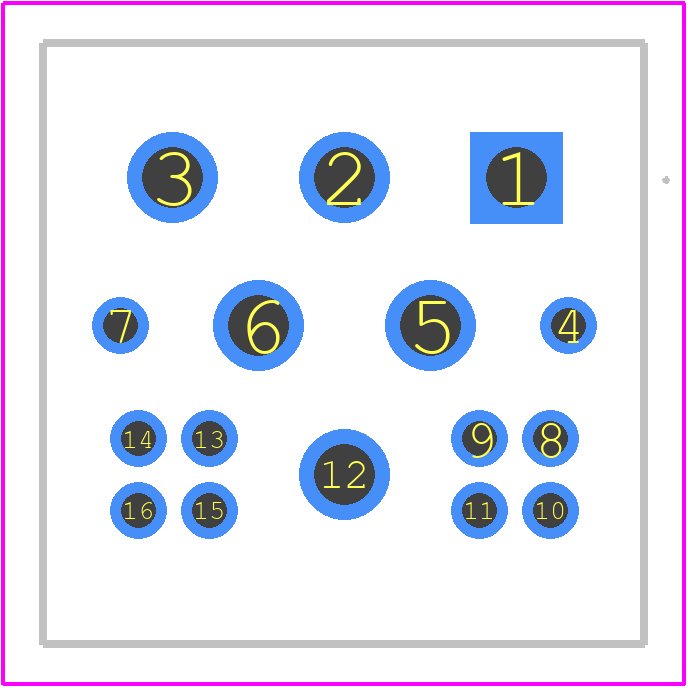

PCB Footprints
2828405-1 - TE Connectivity PCB footprint - Other - Other - 2828405-1-1
click to zoom
3D Models
2828405-1 - TE Connectivity - 3D model - Other - 2828405-1-1
click to zoom

2828405-1 Details

  • Manufacturer Part Number:

    2828405-1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    RATED CURRENT(SIGNAL): 3A; RATED CURRENT(POWER): 13A; STANDARDS: MIL-DTL-38999 SERIES II, MIL-DTL-55302/68, MIL-DTL-55302/71, MIL-DTL-55302/72, MIL-DTL-55302/75, MIL-DTL-83733

  • Body Breadth:

    0.591 inch

  • Body Depth:

    1.098 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Gender:

    FEMALE

  • Mating Contact Pitch:

    0.07 inch

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    MIL; SAE

  • Total Number of Contacts:

    16

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2828405-1 Overview

Use the download button to access the 2828405-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 28284, or try a keyword search, such as Other Rectangular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
