284392-8 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Number of Rows 1 | Stacking Configuration Side Stackable | Wire Entry Angle 90° | Wire Entry Location Side | Number of Positions 8 | Stacked Levels Without | Contact Features: Contact Base Material Brass | Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 12 AMP | Dimensions: Wire Size 30 – 14 AWG | Wire Size .05 – 2 MMSQ | Electrical Characteristics: Operating Voltage 300 VAC | Hou

Download 284392-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
284392-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

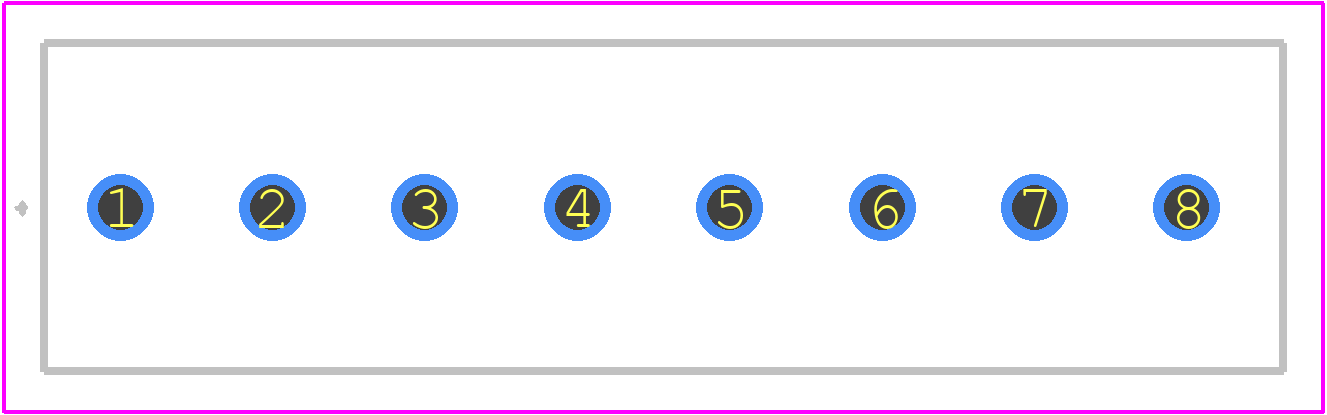

284392-8 - TE Connectivity PCB footprint - Other - Other - 284392-8-1
click to zoom
3D Models
284392-8 - TE Connectivity - 3D model - Other - 284392-8-1
click to zoom

284392-8 Details

  • Manufacturer Part Number:

    284392-8

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    8 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.49

  • Additional Feature:

    BUCHANAN, POLYAMIDE66, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2 mm2

  • Wire Gauge:

    14 AWG

284392-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 284392-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 284392-8 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and salt spray, making it suitable for outdoor use.
  • The 284392-8 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain proper connection and performance.
