290-1AB - Wakefield Thermal

Description: Heat Sinks Low Cost Single Package Heat Sink for TO-218, TO-220, TO-202, Aluminum, Black Anodized, 25.4x30.0x12.7mm

Download 290-1AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
290-1AB - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

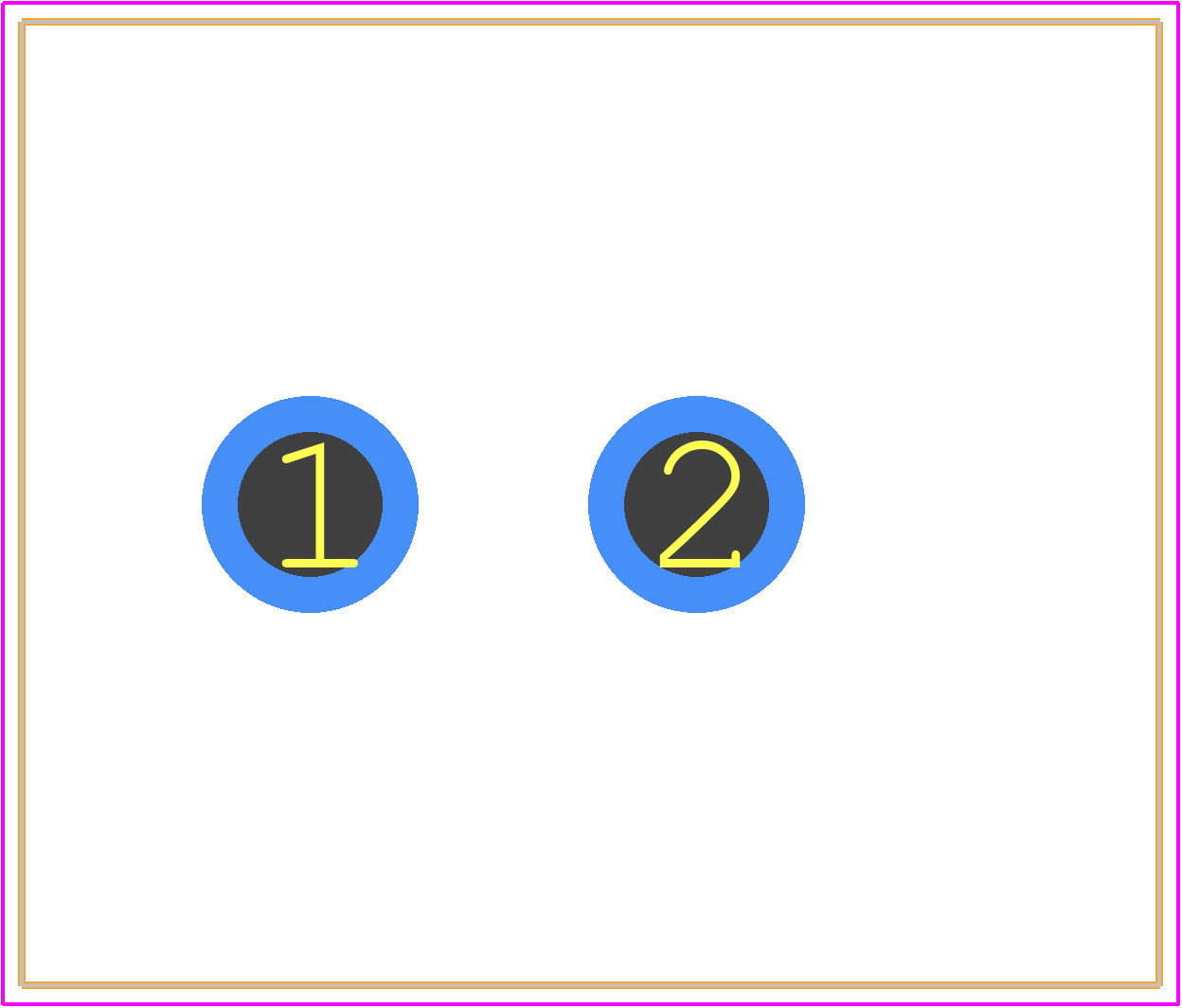

290-1AB - Wakefield Thermal PCB footprint - Other - Other - 290-1AB-2
click to zoom
3D Models
290-1AB - Wakefield Thermal - 3D model - Other - 290-1AB-2
click to zoom

290-1AB Details

  • Manufacturer Part Number:

    290-1AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • YTEOL:

    7

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Fin Orientation:

    TRANSVERSE

  • Finish:

    ANODIZED

  • Height:

    12.7 mm

  • Length:

    25.4 mm

  • Profile:

    U

  • Thermal Support Device Type:

    HEAT SINK

  • Weight:

    3.72 g

  • Width:

    30 mm

290-1AB Frequently Asked Questions (FAQs)

  • The recommended mounting orientation for the 290-1AB is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
  • Yes, the 290-1AB is designed to withstand high-vibration environments, but it's recommended to secure the heat sink using screws or adhesive to prevent damage or detachment.
  • Wakefield-Vette recommends using a high-quality thermal interface material (TIM) with a thermal conductivity of at least 5 W/m-K, such as thermal grease or thermal tape, to ensure optimal heat transfer.
  • The 290-1AB is not designed for use in humid or corrosive environments. If exposure to moisture or corrosive substances is unavoidable, consider applying a protective coating or using a different heat sink model designed for harsh environments.
  • The maximum allowable temperature for the 290-1AB is 150°C (302°F). Exceeding this temperature may cause damage to the heat sink or affect its performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

290-1AB Overview

Use the download button to access the 290-1AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 290-1, or try a keyword search, such as Heat Sinks

About Wakefield Thermal

Wakefield Thermal provides thermal solutions for customers in aerospace, LED lighting, automation, consumer electronics, medical devices, renewable energy, telecommunications, and transportation. They manufacture thermal extrusions, LED head sinks, heat frames, and pipes, fans, heat exchangers, and coolant distribution units. Headquartered in Nashua, New Hampshire, Wakefield Thermal has manufacturing facilities in North America and Dongguan, China.
