A good PCB layout for the 291V1022F832AB oscillator involves keeping the oscillator circuitry away from noisy signals, using a solid ground plane, and minimizing trace lengths and vias. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range, and that the oscillator is properly decoupled with a 0.01uF capacitor between VCC and GND. Also, avoid applying a clock signal to the oscillator input during startup.
The maximum frequency deviation for the 291V1022F832AB oscillator is typically ±100 ppm over the operating temperature range of -40°C to 85°C and supply voltage range of 1.8V to 3.3V.
While the 291V1022F832AB oscillator is designed to operate in a variety of environments, it's essential to ensure the device is properly mounted and secured to withstand vibration and humidity. Additional protection measures, such as conformal coating or potting, may be necessary for extreme environments.
To troubleshoot issues with the oscillator, check the power supply voltage, decoupling, and PCB layout. Verify that the oscillator is properly connected and that there are no signal integrity issues. Use an oscilloscope to measure the oscillator output and verify it meets the expected frequency and amplitude specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
291V1022F832AB Overview

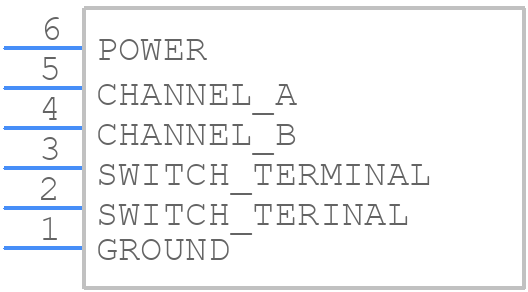

Use the download button to access the 291V1022F832AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 291V1,
or try a keyword search, such as Optical Position Encoders
