2920L330/24MR-A footprint, schematic symbol and 3D model by LITTELFUSE

Symbol

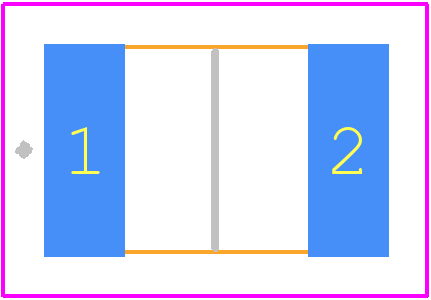

PCB Footprints

3D Models

2920L330/24MR-A Details

The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, the 2920L330/24MR-A is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and securement to prevent mechanical stress and damage.
The maximum surge current rating for the 2920L330/24MR-A is 100A for 1 second. Exceeding this rating may cause damage to the component.
Yes, the 2920L330/24MR-A is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
The operating temperature range for the 2920L330/24MR-A is -40°C to 150°C (-40°F to 302°F). Operating outside this range may affect the component's performance and reliability.
