2920L500/16MR-A - LITTELFUSE

Description: Resettable Fuses - PPTC PTC 16V POLYFUSE SURF MOUNT 2920 5.00A

Download 2920L500/16MR-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2920L500/16MR-A - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

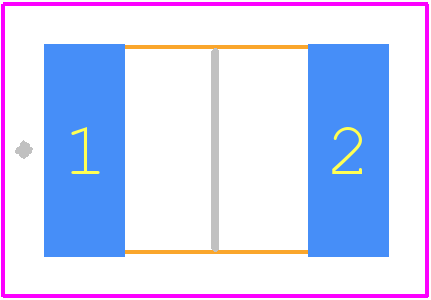

2920L500/16MR-A - LITTELFUSE PCB footprint - Other - Other - 2920L075
click to zoom
3D Models
2920L500/16MR-A - LITTELFUSE - 3D model - Other - 2920L075
click to zoom

2920L500/16MR-A Details

  • Manufacturer Part Number:

    2920L500/16MR-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8.25

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    1.6 mm

  • Package Length:

    7.98 mm

  • Package Style:

    SMT

  • Package Width:

    5.44 mm

  • Packing Method:

    TR, 7 INCH

  • Reference Standard:

    AEC-Q200; CUL; TUV; UL

  • Resistance:

    0.005 Ω

  • Resistor Type:

    PTC THERMISTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Thermistor Application:

    OVERCURRENT PROTECTION

  • Working Voltage:

    16 V

2920L500/16MR-A Frequently Asked Questions (FAQs)

  • The recommended mounting torque for the 2920L500/16MR-A is 10-15 in-lbs (1.1-1.7 Nm) to ensure proper connection and prevent damage to the component.
  • Yes, the 2920L500/16MR-A is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the component remains secure and functional.
  • The maximum surge current rating for the 2920L500/16MR-A is 500A for 10ms, as specified in the datasheet. However, it's crucial to consider the application's specific requirements and ensure the component is not subjected to excessive surge currents.
  • Yes, the 2920L500/16MR-A is compatible with lead-free soldering processes. Littelfuse Inc ensures that their components meet the requirements for lead-free soldering, making them suitable for modern manufacturing processes.
  • The operating temperature range for the 2920L500/16MR-A is -40°C to 125°C. However, it's essential to consider the derating factors and ensure the component is not subjected to temperatures beyond its specified range.
