292133-3 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 3 | Number of Rows 1 | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Thickness 39.37 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Tin | Mating Pin Diameter .6 MM | Contact Mating Area Length 4.2 MM | Contact Shape & Form Rounded | Contact Mating Area Length .165 INCH | Contact Shape & Form Round | Contact Base Materi

Download 292133-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
292133-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

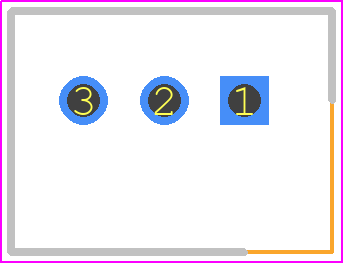

292133-3 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 292133-3
click to zoom
3D Models
292133-3 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 292133-3
click to zoom

292133-3 Details

  • Manufacturer Part Number:

    292133-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

292133-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 292133-3 connector.
  • Yes, the 292133-3 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 292133-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • The 292133-3 connector has a IP67 rating, making it suitable for outdoor use, but it's recommended to follow proper sealing and installation guidelines to ensure environmental protection.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow TE Connectivity's recommended wire gauge specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

292133-3 Overview

Use the download button to access the 292133-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29213, or try a keyword search, such as Headers and Edge Type Connectors
