292406-4 - TE Connectivity

Description: Body Features: Ejector Type Locking | Latch Material Stainless Steel | Module Key Type SGRAM | Connector Profile Standard | Latch Plating Material Tin | Ejector Location Both Ends | Configuration Features: Number of Positions 200 | Number of Rows 2 | Number of Keys 1 | Module Orientation Right Angle | Number of Bays 2 | Contact Features: Contact Mating Area Plating Material Gold Flash | Memory Socket Type Memory Card | Contact Base Material Copper Alloy | Contact Current Rating (Max) .5 AMP | PCB Contact Te

Download 292406-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
292406-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

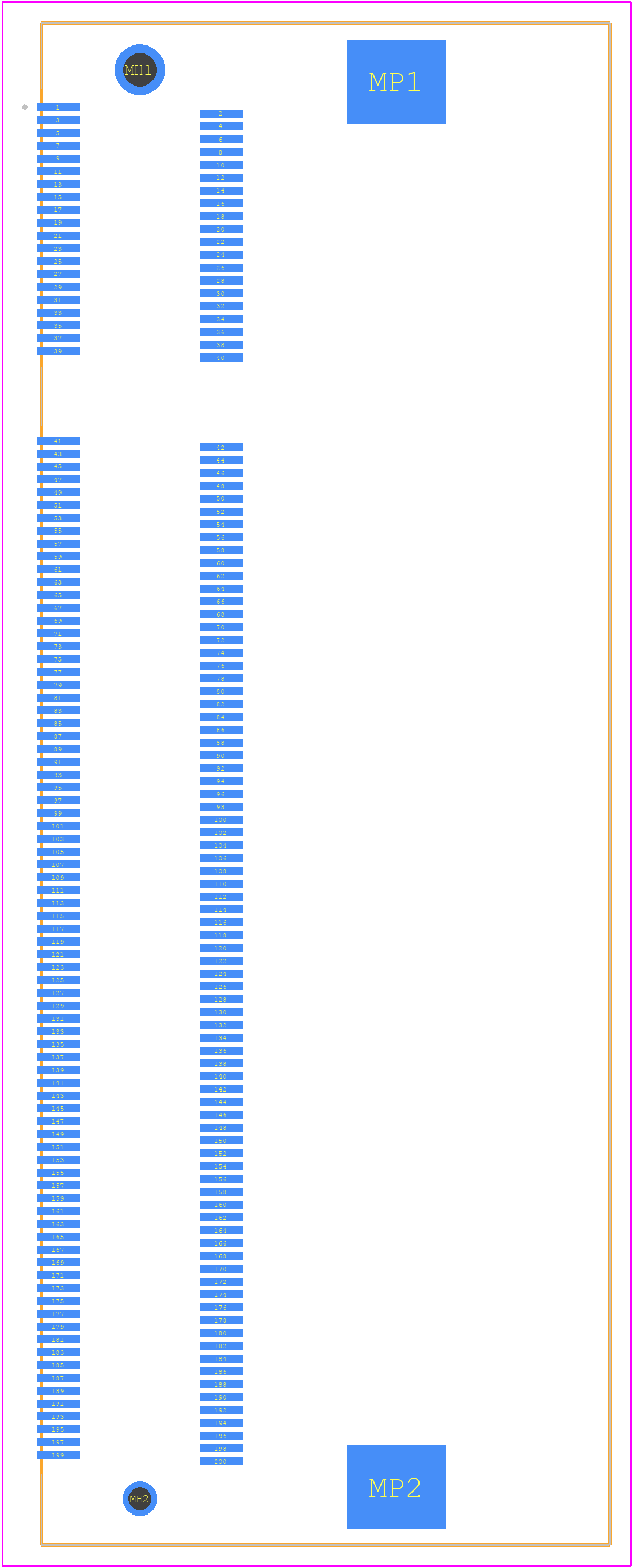

292406-4 - TE Connectivity PCB footprint - Other - Other - 292406-4-3
click to zoom
3D Models
292406-4 - TE Connectivity - 3D model - Other - 292406-4-3
click to zoom

292406-4 Details

  • Manufacturer Part Number:

    292406-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.228 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    200

  • UL Flammability Code:

    94V-0

292406-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 292406-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The 292406-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from cold storage to high-temperature industrial environments.
  • Yes, the 292406-4 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products, including connectors, headers, and seals. This allows for easy integration and customization of your connector system.
  • The 292406-4 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. This makes it suitable for use in harsh environments and outdoor applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

292406-4 Overview

Use the download button to access the 292406-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29240, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
