294001-E footprint, schematic symbol and 3D model by TE Connectivity

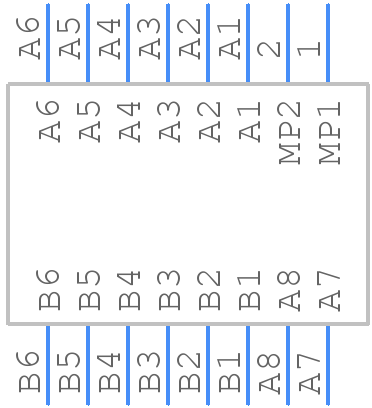

Symbol

click to zoom

PCB Footprints

294001-E - TE Connectivity PCB footprint - Other - Other - 294001-E-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 294001-E
Part Number 294001-E
Manufacturer TE Connectivity
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - 294001-E-2
Released Date Jul 19, 2024
Last Modified Date Dec 15, 2024 10:37 PM UTC
Pinout / Pin List Click Here (Member Only)

294001-E Details

Manufacturer Part Number:
294001-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
24 Weeks, 3 Days
Manufacturer:
TE Connectivity
YTEOL:
8.68
Board Mounting Option:
LOCATING POST
Body Breadth:
0.185 inch
Body Depth:
0.181 inch
Body Length:
0.405 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
100000000 Ω
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
2.33A
Mating Contact Row Spacing:
0.049 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
2.33 A
Reference Standard:
UL
Terminal Pitch:
0.8 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16
UL Flammability Code:
94V-0
