Part Image

294028-E - TE Connectivity

Description: PCB Mount Receptacle, Vertical, Board-to-Board, 32 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroCon

Download 294028-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

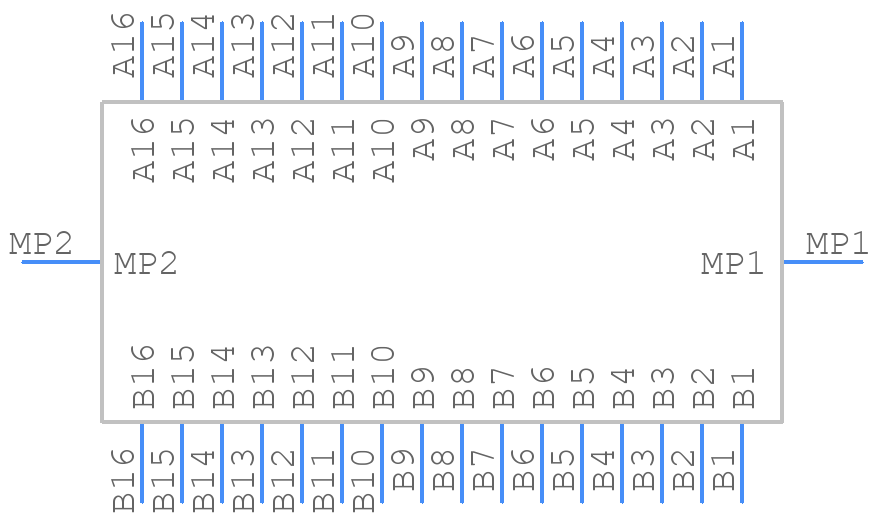

Symbol
294028-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
294028-E - TE Connectivity PCB footprint - Other - Other - 294028-E-3
click to zoom
3D Models
294028-E - TE Connectivity - 3D model - Other - 294028-E-3
click to zoom

294028-E Details

  • Manufacturer Part Number:

    294028-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.185 inch

  • Body Depth:

    0.338 inch

  • Body Length:

    0.669 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.82A

  • Mating Contact Row Spacing:

    0.049 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2.82 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

294028-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 294028-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • Yes, the 294028-E connector is part of the TE Connectivity's AMPSEAL series, which is designed to be compatible with other products in the same series. However, it's always recommended to verify compatibility with specific products and applications before use.
  • The 294028-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The 294028-E connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications with prolonged exposure to water or harsh chemicals. Additional protection or sealing may be required for such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

294028-E Overview

Use the download button to access the 294028-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29402, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
