294254-E - TE Connectivity

Description: PCB Mount Receptacle, Right Angle, Board-to-Board, 26 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroCon

Download 294254-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

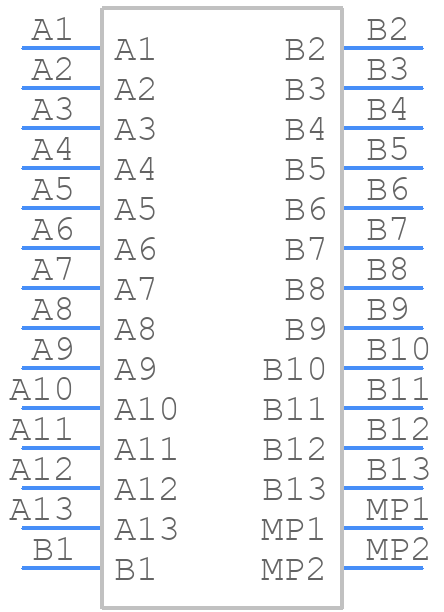

294254-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
294254-E - TE Connectivity PCB footprint - Other - Other - 294254-E-2
click to zoom
3D Models
294254-E - TE Connectivity - 3D model - Other - 294254-E-2
click to zoom

294254-E Details

  • Manufacturer Part Number:

    294254-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

294254-E Overview

Use the download button to access the 294254-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29425, or try a keyword search, such as Headers and Edge Type Connectors
