299-43-618-10-002000 - Mill-Max

Description: 18 (2 x 9) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal

Download 299-43-618-10-002000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
299-43-618-10-002000 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

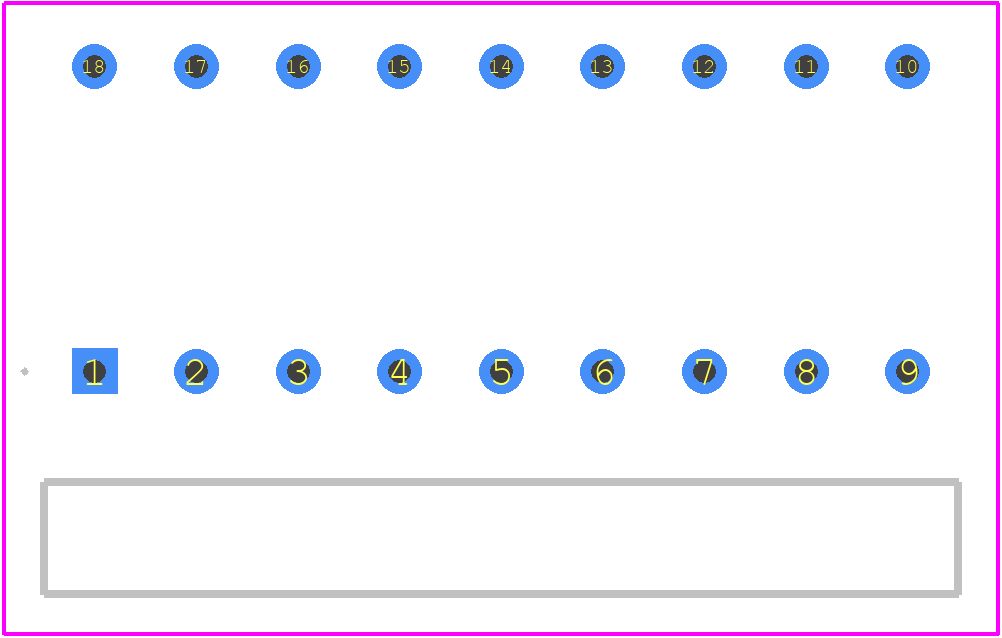

299-43-618-10-002000 - Mill-Max PCB footprint - Other - Other - 299-43-618-10-002000-1
click to zoom
3D Models
299-43-618-10-002000 - Mill-Max - 3D model - Other - 299-43-618-10-002000-1
click to zoom

299-43-618-10-002000 Details

  • Manufacturer Part Number:

    299-43-618-10-002000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    7.3

  • Additional Feature:

    DIP SOCKET

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP18

  • Housing Material:

    PLASTIC

  • JESD-609 Code:

    e3

  • Number of Contacts:

    18
