TD - MAXIMUM VALUE AND TS1 AND TR IS NOMINAL VALUE
High Side Driver:
YES
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code:
R-XDMA-T30
Length:
61 mm
Number of Functions:
1
Number of Terminals:
30
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
PUSH-PULL
Output Peak Current Limit-Nom:
10 A
Output Polarity:
TRUE
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Supply Voltage-Max:
16 V
Supply Voltage-Min:
14 V
Supply Voltage-Nom:
15 V
Surface Mount:
NO
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Turn-off Time:
700 µs
Turn-on Time:
690 µs
Width:
40 mm
2ASC-12A1HP Frequently Asked Questions (FAQs)
Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ensure signal integrity.
The 2ASC-12A1HP is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, follow the recommended thermal management guidelines, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, consider derating the device's operating frequency and voltage to reduce heat generation.
The maximum clock frequency for the 2ASC-12A1HP is 100 MHz. However, the actual achievable frequency may be lower depending on the system design, PCB layout, and signal quality. It's essential to perform thorough signal integrity analysis and simulation to ensure reliable operation at the desired frequency.
To troubleshoot issues with the 2ASC-12A1HP, start by reviewing the datasheet and application notes to ensure correct configuration and usage. Then, use debugging tools such as oscilloscopes, logic analyzers, or signal generators to analyze the device's behavior and identify potential issues. Microchip also provides technical support and resources, such as forums and knowledge bases, to help resolve problems.
The 2ASC-12A1HP is not specifically designed or qualified for use in radiation-hardened or radiation-tolerant applications. If radiation hardness is required, Microchip offers other products that are designed and tested for such environments. Consult with Microchip's technical support or radiation-hardened product lines for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2ASC-12A1HP Overview

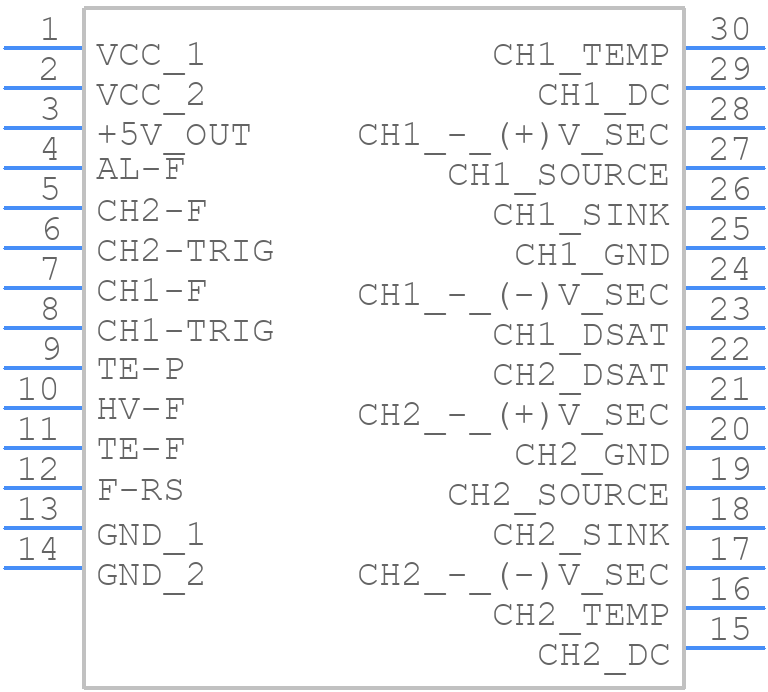

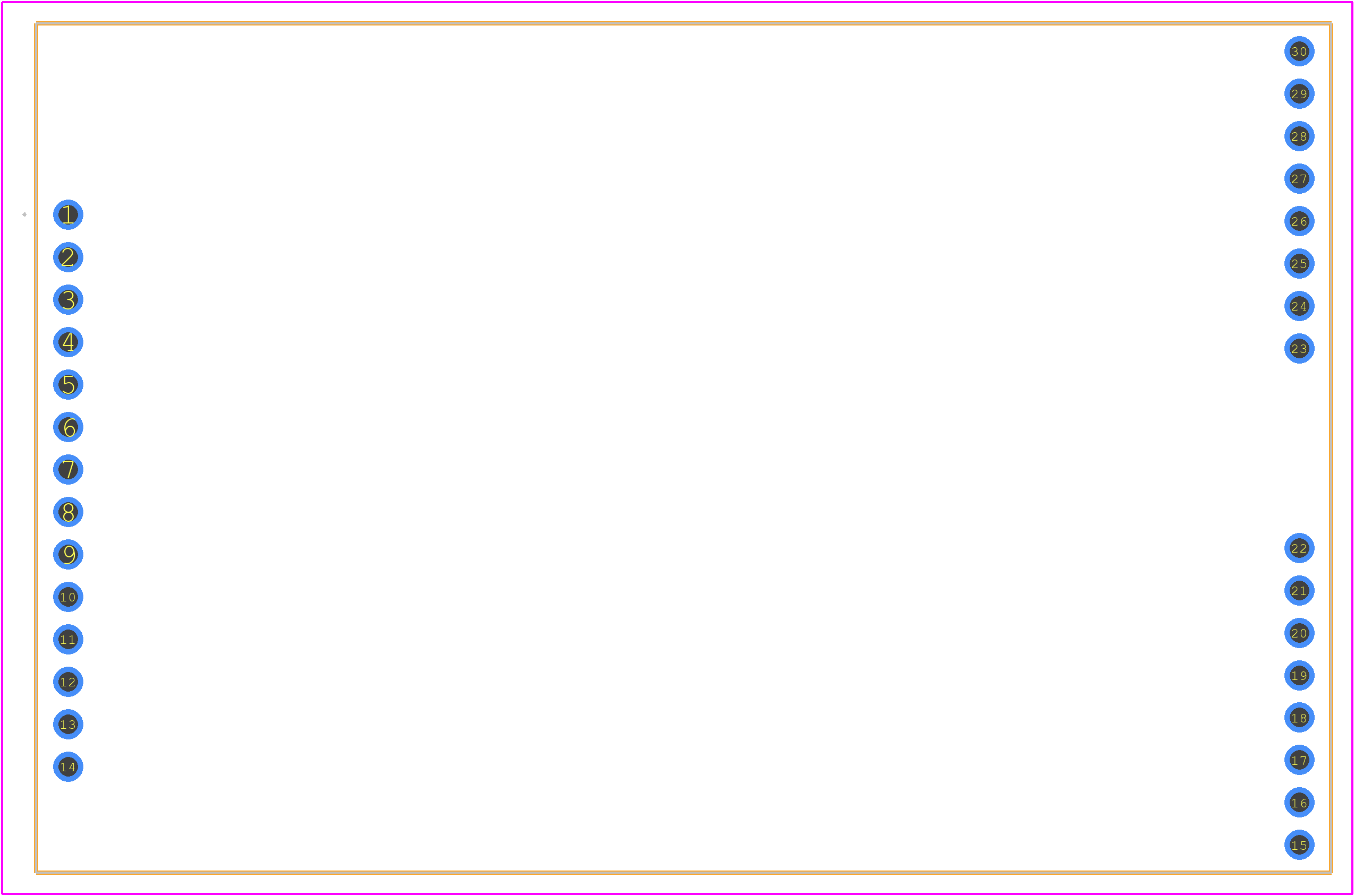

Use the download button to access the 2ASC-12A1HP schematic symbol, PCB footprint, and 3D model.
