2BHR-40-VUA-SMT - Adam Tech

2BHR-40-VUA-SMT Details

• Manufacturer Part Number:

  2BHR-40-VUA-SMT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Adam Technologies Inc

• YTEOL:

  8.4

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.212 inch

• Body Depth:

  0.238 inch

• Body Length:

  1.858 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

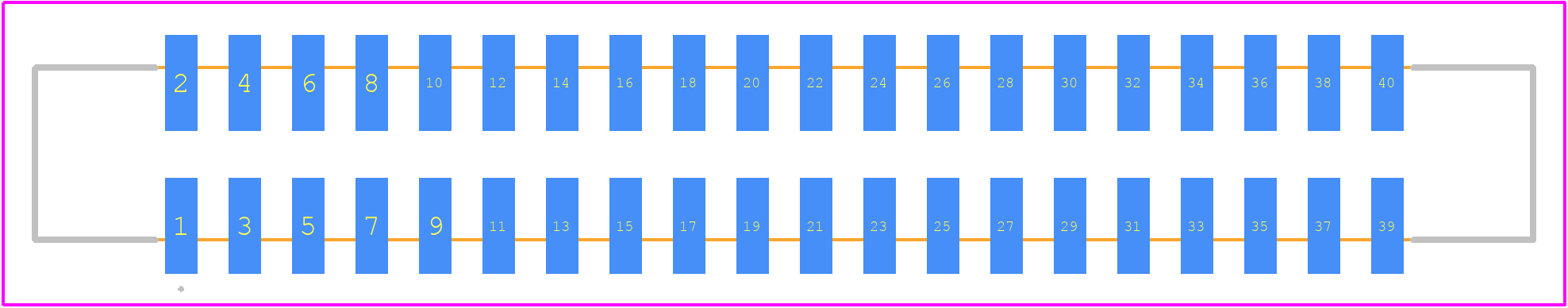

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  4.4958 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL, CSA

• Terminal Pitch:

  2.0066 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40
