Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce parasitic inductance and ensure optimal performance. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
Proper thermal management is crucial for the 2DA1971Q-7. Ensure good thermal conductivity by using a thermal pad or thermal tape on the exposed pad, and provide adequate airflow around the device. A thermal resistance of <1°C/W is recommended.
The 2DA1971Q-7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is not exposed to static electricity during handling.
The 2DA1971Q-7 is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines, and ensure that the device is properly thermally managed to prevent overheating.
Start by verifying the PCB layout and ensuring that the device is properly soldered. Check for signs of overheating, and verify that the input and output voltages are within the recommended range. Use a scope or logic analyzer to troubleshoot signal integrity issues, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2DA1971Q-7 Overview

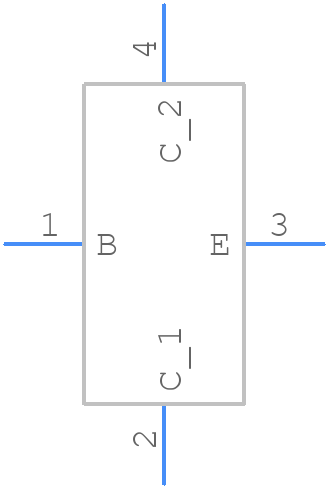

Use the download button to access the 2DA1971Q-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2DA19,
or try a keyword search, such as Power Bipolar Transistors
