2ED020I12-FI - Infineon

Description: 1200V Half Bridge IGBT Gate Driver SO18 Infineon 2ED020I12-FI, Dual MOSFET Power Driver, -1A Half Bridge, 14 → 18 V, 18-Pin SOIC

Download 2ED020I12-FI Model

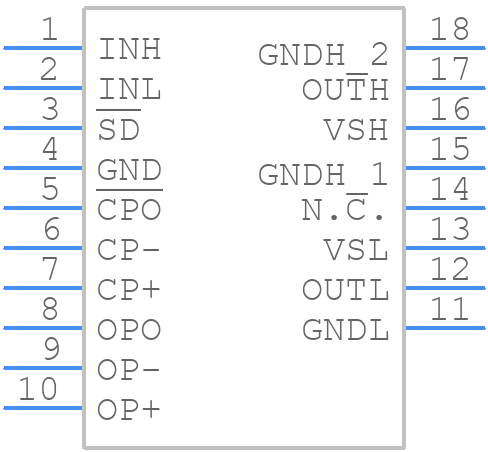

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2ED020I12-FI - Infineon PCB footprint - Other - Other - 2ED020I12-FI
click to zoom
3D Models
2ED020I12-FI - Infineon  - 3D model - Other - 2ED020I12-FI
click to zoom

2ED020I12-FI Details

  • Manufacturer Part Number:

    2ED020I12-FI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20/18

  • Country Of Origin:

    Germany, Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18/20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    14 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    14 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    7.6 mm

2ED020I12-FI Frequently Asked Questions (FAQs)

  • The recommended PCB layout is to keep the power supply lines and ground planes separate and well-filtered. Additionally, use a ground plane on the bottom layer and a power plane on the top layer to reduce electromagnetic interference (EMI).
  • The 2ED020I12-FI has built-in overvoltage and undervoltage protection. In case of an overvoltage, the device will shut down to prevent damage. For undervoltage conditions, the device will enter a low-power mode to conserve energy.
  • Yes, the 2ED020I12-FI is designed to operate in temperatures up to 150°C. However, it's recommended to derate the device's current and voltage ratings at high temperatures to ensure reliable operation.
  • The 2ED020I12-FI is designed to handle surge currents up to 10A for 1ms. However, it's recommended to use a surge current limiter or a fuse to protect the device from excessive surge currents.
  • Yes, the 2ED020I12-FI is designed to operate up to 100 kHz. However, it's recommended to derate the device's current and voltage ratings at high frequencies to ensure reliable operation.
