- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2ED1321S12MXUMA1
- Part Number 2ED1321S12MXUMA1
- Manufacturer Infineon
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 2ED1321S12MXUMA1asxc
- Released Date Jan 23, 2024
- Last Modified Date Jan 23, 2024 4:36 AM UTC
- Pinout / Pin List Click Here (Member Only)
2ED1321S12MXUMA1 Details
-
Manufacturer Part Number:
2ED1321S12MXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Indonesia, Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
7
-
Interface IC Type:
HALF BRIDGE BASED IGBT/MOSFET DRIVER
-
Moisture Sensitivity Level:
3
Trust Checks
Community Provided
System Verified
Community Approved
2ED1321S12MXUMA1 Overview

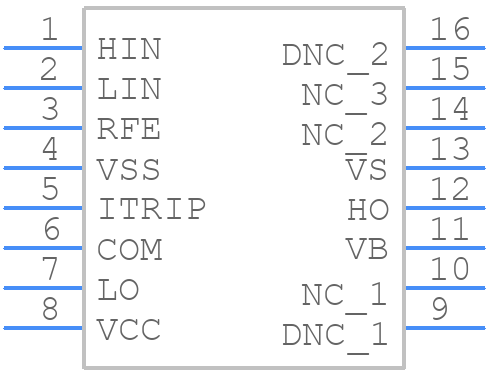

Use the download button to access the 2ED1321S12MXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2ED13,
or try a keyword search, such as MOSFET Drivers
