Infineon provides a dedicated application note (AN2014-03) that outlines the recommended PCB layout and thermal management guidelines for the 2ED21084S06JXUMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
When selecting a gate driver for the 2ED21084S06JUMA1, consider factors such as the driver's output current, voltage rating, and propagation delay. Infineon recommends using their EiceDRIVER™ gate driver family, which is specifically designed to work with their IGBT modules. Consult the gate driver datasheet and application notes for more information.
Paralleling multiple 2ED21084S06JXUMA1 modules can be done, but it requires careful consideration of the module's current sharing, thermal management, and gate drive synchronization. Infineon provides guidelines for paralleling IGBT modules in their application notes (e.g., AN2014-04). It's essential to follow these guidelines to ensure reliable operation and avoid potential issues.
Implementing overcurrent protection and fault detection for the 2ED21084S06JXUMA1 typically involves using external sensors and monitoring circuits. Infineon recommends using their TRENCHSTOP™ IGBT modules with built-in fault detection and protection features. Additionally, consider using external protection ICs, such as the Infineon EicePROTECT™ family, which can provide advanced fault detection and protection capabilities.
The 2ED21084S06JXUMA1 is designed to meet the high reliability requirements of industrial and automotive applications. Infineon provides detailed reliability data and lifetest results in their datasheet and application notes. The module's lifespan can be estimated based on factors such as operating conditions, temperature, and load cycles. Consult Infineon's reliability engineers or application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2ED21084S06JXUMA1 Overview

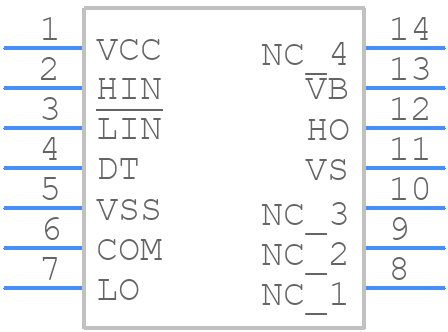

Use the download button to access the 2ED21084S06JXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2ED21,
or try a keyword search, such as MOSFET Drivers
