- Part Number 2ED4820EMXUMA2
- Manufacturer Infineon
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-TSDSO-24
- Released Date Apr 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
2ED4820EMXUMA2 Details
-
Manufacturer Part Number:
2ED4820EMXUMA2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TSSOP-24
-
Country Of Origin:
Germany, Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
High Side Driver:
YES
-
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
2ED4820EMXUMA2 Frequently Asked Questions (FAQs)
-
Infineon provides a dedicated application note (AN2014-01) that outlines the recommended PCB layout and thermal management guidelines for the 2ED4820EMXUMA2. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
-
When selecting a gate driver for the 2ED4820EMXUMA2, consider factors such as the driver's output current, voltage rating, and propagation delay. Infineon recommends using their EiceDRIVER™ gate driver family, which is specifically designed to work with their IGBT modules. Consult the gate driver datasheet and application notes for more information.
-
Paralleling multiple 2ED4820EMXUMA2 modules can be done to achieve higher current ratings, but it requires careful consideration of the module's internal resistance, thermal management, and gate drive synchronization. Infineon provides guidelines for paralleling IGBT modules in their application notes (e.g., AN2014-02). It's essential to follow these guidelines to ensure reliable operation and avoid thermal runaway.
-
To protect the 2ED4820EMXUMA2 from overvoltage and overcurrent conditions, implement a suitable protection circuitry, such as a voltage clamp or a current sense resistor, in conjunction with a monitoring IC or a microcontroller. Infineon recommends using their PRO-SIL™ protection devices, which are designed to work with their IGBT modules. Consult the protection device datasheet and application notes for more information.
-
Infineon provides reliability data for the 2ED4820EMXUMA2 in their datasheet and reliability reports. The module's lifetime is influenced by factors such as operating temperature, voltage, and current stress. Consult Infineon's reliability data and application notes to estimate the module's lifetime in your specific application.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2ED4820EMXUMA2 Overview

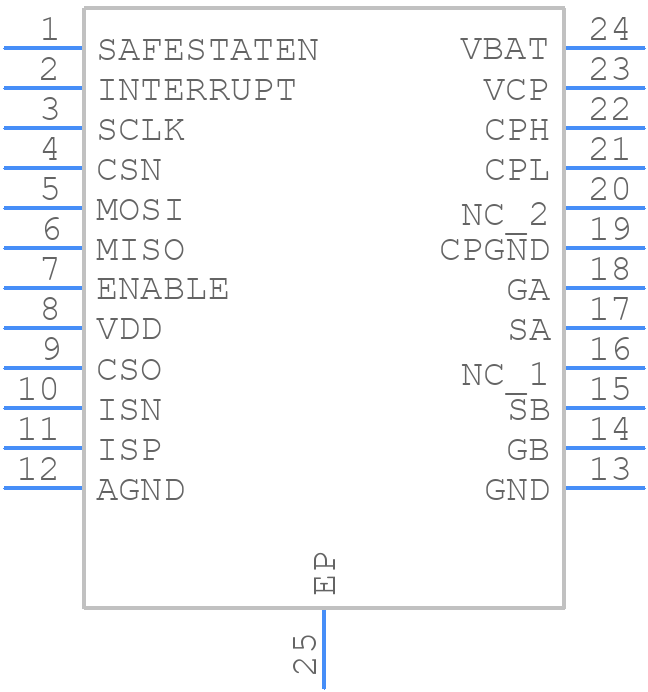

Use the download button to access the 2ED4820EMXUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2ED48,
or try a keyword search, such as MOSFET Drivers
