Part Image

2EDB8259F - Infineon

Description: EiceDRIVER™ 2EDB8259F, 2EDBx259Y is a family of dual-channel isolated gate-driver ICs, designed to drive Si and SiC MOSFETs and GaN HEMTs power switches. All products are available in a DSO package with 4 mm input-to-output creepage and provide basic isolation by means of on-chip coreless transformer (CT) technology. 2EDBx279Y variants in a 14-pin DSO package offer increased channel-to-channel creepage. They are suited for use in applications with higher bus voltage or higher pollution degree and, in ge

Download 2EDB8259F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 2EDB8259F model

Email notifications will be applied after download.

Send part feedback

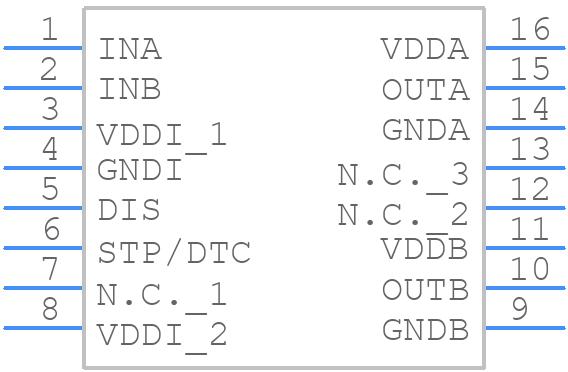

Symbol

2EDB8259F - Infineon - PCB symbol

PCB Footprints

2EDB8259F - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - Package DSO16-150mil

3D Models

2EDB8259F - Infineon - 3D model - Small Outline Packages - Package DSO16-150mil

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2EDB8259F
Part Number 2EDB8259F
Manufacturer Infineon
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - Package DSO16-150mil
Released Date Apr 5, 2023
Last Modified Date Apr 5, 2023 9:22 AM UTC
Pinout / Pin List Click Here (Member Only)

2EDB8259F Details

Manufacturer Part Number:
2EDB8259F
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

2EDB8259F Overview

Use the download button to access the 2EDB8259F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2EDB8, or try a keyword search, such as MOSFET Drivers
