Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
Infineon provides EMC guidelines in their application note AN2013-02, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
According to Infineon's application note AN2013-03, the maximum allowed voltage stress on the device pins is 20% above the recommended operating voltage, but not exceeding the absolute maximum ratings specified in the datasheet.
Infineon recommends following the guidelines in their application note AN2013-04 for soldering and rework, including the use of a soldering iron with a temperature of 350°C or less, and avoiding the use of ultrasonic cleaning.
Infineon recommends storing the device in a dry, cool place, away from direct sunlight and moisture, and handling the device by the body rather than the leads to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2EDF7275FXUMA2 Overview

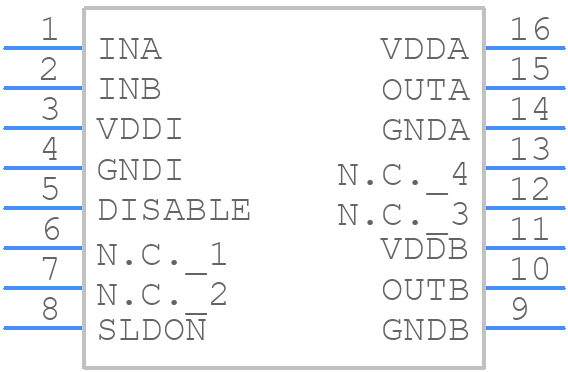

Use the download button to access the 2EDF7275FXUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EDF7,
or try a keyword search, such as MOSFET Drivers
