2EDF7275KXUMA1 - Infineon

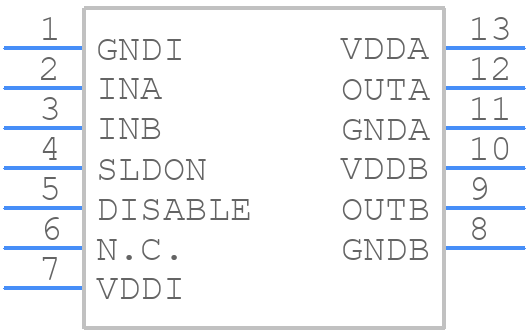

2EDF7275KXUMA1 Details

• Manufacturer Part Number:

  2EDF7275KXUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  LGA-13

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES WITH OUTPUT SUPPLY VOLTAGE VDDA 4.5 TO 20

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PBGA-B13

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  13

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  8 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFLGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Seated Height-Max:

  1.06 mm

• Supply Voltage-Max:

  3.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  20 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BUTT

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Turn-off Time:

  0.044 µs

• Turn-on Time:

  0.044 µs

• Width:

  5 mm
