Infineon provides a dedicated application note (AN2014-01) that outlines the recommended PCB layout and thermal management guidelines for the 2EDF8275FXUMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and to prevent thermal-related issues.
When selecting a gate driver for the 2EDF8275FXUMA1, consider factors such as the driver's output current, voltage rating, and propagation delay. Infineon recommends using their EiceDRIVER™ gate driver family, which is specifically designed to work with their IGBT modules. The EiceDRIVER™ 1EDC20I12BA and 1EDC20I12FA are suitable options for the 2EDF8275FXUMA1.
Paralleling multiple 2EDF8275FXUMA1 modules can be done, but it requires careful consideration of the module's internal layout, thermal management, and gate drive circuitry. Infineon provides guidelines for paralleling IGBT modules in their application note (AN2014-03). It's essential to ensure that the modules are properly synchronized, and the gate drive circuitry is designed to handle the increased current and voltage requirements.
To protect the 2EDF8275FXUMA1 from faults, implement a comprehensive protection scheme that includes overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP). Infineon recommends using their PRO-SIL™ SBC (Silicon-Based Component) or other dedicated protection ICs, such as the Infineon EicePROTECT™, to provide robust protection for the IGBT module.
The 2EDF8275FXUMA1 is designed to operate in high-temperature and high-stress environments. Infineon provides reliability data and lifetime expectations for their IGBT modules in their datasheets and application notes. The module's lifetime is influenced by factors such as junction temperature, switching frequency, and operating conditions. It's essential to follow Infineon's guidelines and recommendations to ensure the module operates within its specified ratings and to achieve optimal reliability and lifetime.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2EDF8275FXUMA1 Overview

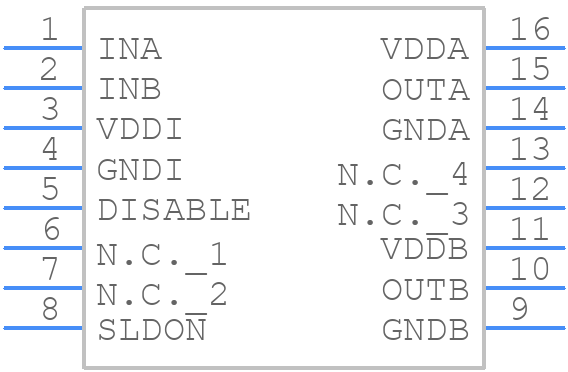

Use the download button to access the 2EDF8275FXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EDF8,
or try a keyword search, such as MOSFET Drivers
