- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2EDF9275FXUMA1
- Part Number 2EDF9275FXUMA1
- Manufacturer Infineon
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-DSO-16_11
- Released Date Oct 30, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
2EDF9275FXUMA1 Details
-
Manufacturer Part Number:
2EDF9275FXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Country Of Origin:
Germany, Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
13 Weeks
-
Date Of Intro:
2020-04-22
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
3
-
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER
2EDF9275FXUMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
-
Infineon provides EMC guidelines in their application note AN2013-02, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
-
According to Infineon's application note AN2013-03, the maximum allowed voltage transient on the input pins is 100 ns, with a maximum amplitude of 1.5 times the nominal voltage.
-
Infineon recommends using an external overcurrent protection circuit, such as a fuse or a current sense resistor, to detect and respond to overcurrent conditions. The device also has a built-in overcurrent protection feature that can be enabled through the configuration pins.
-
The recommended operating temperature range for the 2EDF9275FXUMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to derate the device's performance at temperatures above 125°C.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2EDF9275FXUMA1 Overview

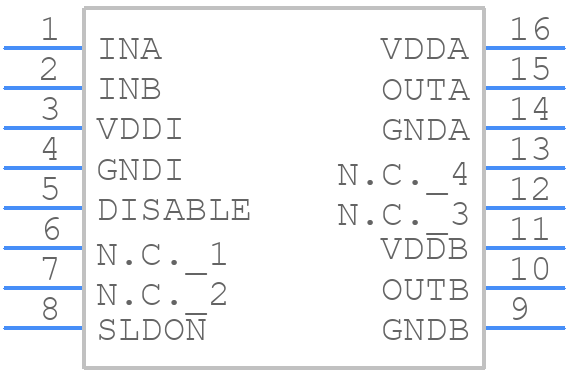

Use the download button to access the 2EDF9275FXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EDF9,
or try a keyword search, such as MOSFET Drivers
