2EDL23I06PJ - Infineon

Description: Gate Drivers 600V half-brdg,2.8A BSD, OCP, EN & FAULT

Download 2EDL23I06PJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

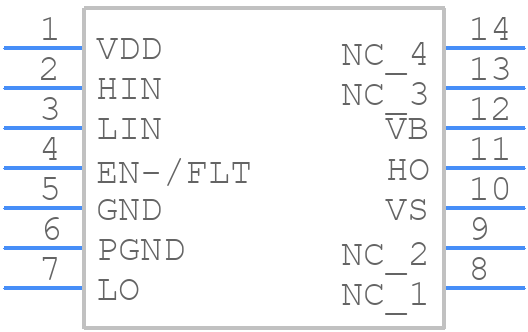

PCB Footprints
2EDL23I06PJ - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14(8.55mmX3.8mm)
click to zoom
3D Models
2EDL23I06PJ - Infineon  - 3D model - Small Outline Packages - PG-DSO-14(8.55mmX3.8mm)
click to zoom

2EDL23I06PJ Details

  • Manufacturer Part Number:

    2EDL23I06PJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    2.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    SOI

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.59 µs

  • Turn-on Time:

    0.61 µs

  • Width:

    3.9 mm

2EDL23I06PJ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2EDL23I06PJ is -40°C to 150°C.
  • The recommended PCB layout for the 2EDL23I06PJ involves placing the device near the power source, using a solid ground plane, and minimizing the length of the high-current paths.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 5 W/mK should be used.
  • The maximum allowable voltage transient for the 2EDL23I06PJ is 50 V for a duration of less than 100 ms.
  • Yes, the 2EDL23I06PJ can be used in a parallel configuration to increase current handling, but it is essential to ensure that the devices are properly matched and that the current sharing is balanced.
