2EDL23N06PJ - Infineon

Description: Infineon 2EDL23N06PJ, MOSFET Power Driver

Download 2EDL23N06PJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

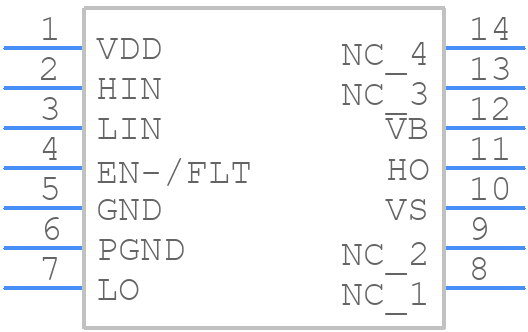

2EDL23N06PJ - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - DSO - 14_2022
click to zoom
3D Models
2EDL23N06PJ - Infineon  - 3D model - Small Outline Packages - DSO - 14_2022
click to zoom

2EDL23N06PJ Details

  • Manufacturer Part Number:

    2EDL23N06PJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    2.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    SOI

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.59 µs

  • Turn-on Time:

    0.61 µs

  • Width:

    3.9 mm

2EDL23N06PJ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2EDL23N06PJ is -40°C to 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
  • The recommended gate resistor value for the 2EDL23N06PJ is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, the 2EDL23N06PJ is suitable for high-reliability applications due to its robust design and manufacturing process. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specified parameters.
  • To protect the 2EDL23N06PJ from ESD, handle the device with an anti-static wrist strap or mat, and ensure the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
