2EDL23N06PJXUMA1 - Infineon

Description: Gate Driver IC 600 V half bridge SO14

Download 2EDL23N06PJXUMA1 Model

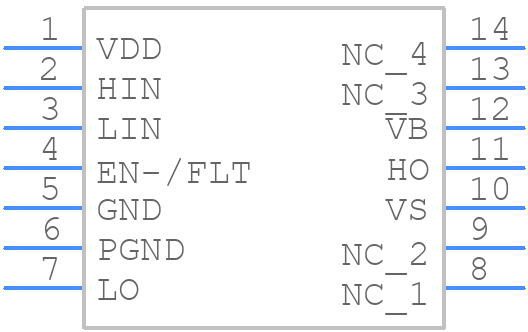

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDL23N06PJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14_4
click to zoom
3D Models
2EDL23N06PJXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14_4
click to zoom

2EDL23N06PJXUMA1 Details

  • Manufacturer Part Number:

    2EDL23N06PJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    SOI

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.59 µs

  • Turn-on Time:

    0.61 µs

  • Width:

    3.9 mm

2EDL23N06PJXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2EDL23N06PJXUMA1 is -55°C to 175°C.
  • To ensure the MOSFET is fully turned on, apply a gate-source voltage (Vgs) of at least 10V, and ensure the gate current is sufficient to charge the gate capacitance quickly.
  • For optimal performance, use a PCB layout with a low-inductance path for the drain and source pins, and keep the gate trace as short as possible to minimize ringing and oscillations.
  • Yes, the 2EDL23N06PJXUMA1 is suitable for high-frequency switching applications up to 1 MHz, but ensure proper PCB layout and decoupling to minimize ringing and electromagnetic interference (EMI).
  • Use a voltage clamp or a zener diode to protect the MOSFET from overvoltage, and consider adding a current sense resistor and a fuse to protect against overcurrent.
