SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.04 mm
Supply Voltage-Max:
20 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Turn-off Time:
0.025 µs
Turn-on Time:
0.025 µs
Width:
3 mm
2EDN7424RXTMA1 Frequently Asked Questions (FAQs)
Infineon provides a dedicated application note (AN2014-01) that outlines the recommended PCB layout and thermal management guidelines for the 2EDN7424RXTMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and to prevent thermal-related issues.
When selecting a gate driver for the 2EDN7424RXTMA1, consider factors such as the driver's output current capability, voltage rating, and propagation delay. Infineon recommends using a gate driver with a high current capability (> 2A) and a low propagation delay (< 50ns) to ensure proper switching and minimize losses. The 1EDN7550 and 1EDN8550 gate drivers from Infineon are suitable options.
Monitor critical parameters such as drain-source voltage, drain current, and junction temperature to ensure safe operation. Implement fault detection mechanisms such as overcurrent protection, overvoltage protection, and overtemperature protection using external circuitry or dedicated ICs like the Infineon TLE4961. Additionally, consider implementing a shutdown mechanism in case of fault detection.
To ensure EMC and reduce EMI, follow best practices such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components. Infineon provides guidelines for EMC design in their application notes and recommends using their dedicated EMI filters and common-mode chokes.
The 2EDN7424RXTMA1 is designed to meet high reliability standards, with a typical lifetime of > 10 years. To estimate the lifespan, consider factors such as operating conditions, temperature, and stress levels. Infineon provides reliability data and models, such as the FIT (Failure In Time) rate, to help estimate the device's lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2EDN7424RXTMA1 Overview

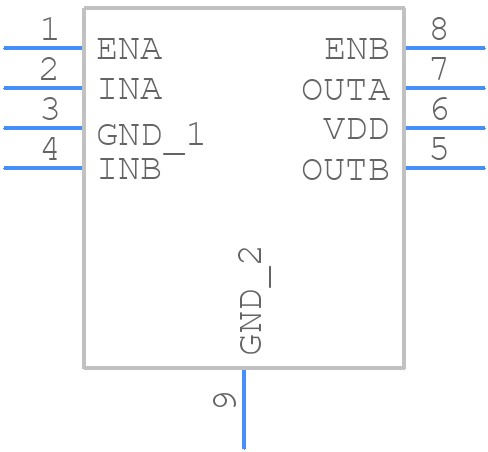

Use the download button to access the 2EDN7424RXTMA1 schematic symbol, PCB footprint, and 3D model.
