Part Image

2EHDRC-10P - Dinkle

Description: Short description PCB Connector – Socket, Wave soldering Category PCB Connector – Socket Pitch (mm) 5.08 Color Green (default) Type of locking Without Soldering method Wave soldering Length (mm) 5.08*(P-1)+6.68 Width (mm) 12 Height (mm) 8.47 Pin demensions (Thickness x Width)(mm) 1.0x1.0 PCB hole diameter (mm) 1.6~1.7 Number of positions 02P~24P Level Single level

Download 2EHDRC-10P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2EHDRC-10P - Dinkle - PCB symbol
click to zoom

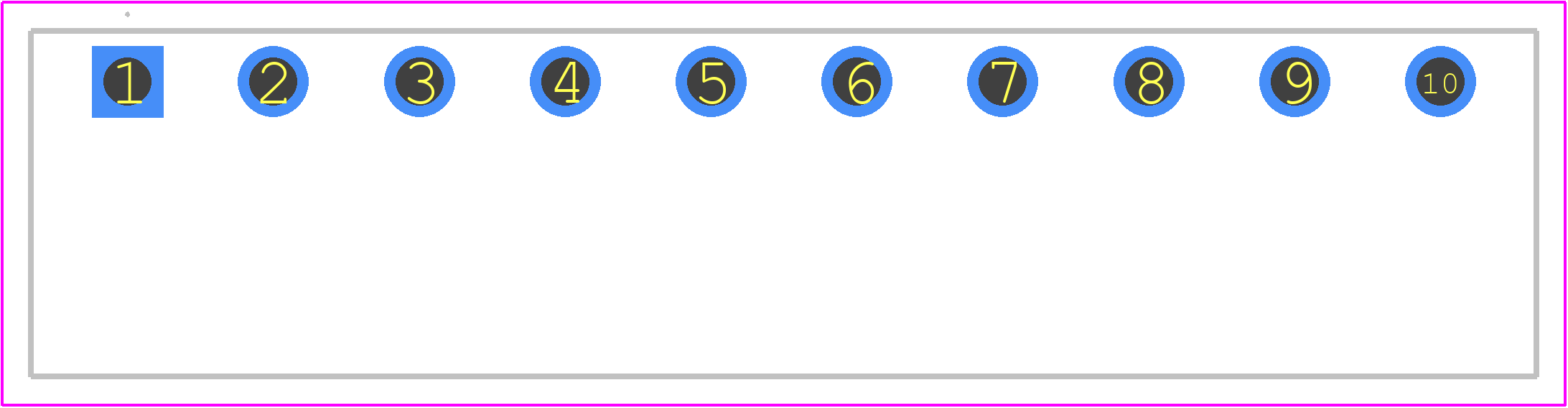

PCB Footprints
2EHDRC-10P - Dinkle PCB footprint - Other - Other - 2EHDRC-10P-1
click to zoom

2EHDRC-10P Details

  • Manufacturer Part Number:

    2EHDRC-10P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2EHDRC-10P Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.0 Nm (5-10 in-lbs) for the screws on the 2EHDRC-10P connector.
  • Yes, the 2EHDRC-10P connector is suitable for outdoor use, as it has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • Yes, the 2EHDRC-10P connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • The operating temperature range of the 2EHDRC-10P connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2EHDRC-10P connector meets the requirements of UL 1977 and CE IEC 61076-2-101 standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2EHDRC-10P Overview

Use the download button to access the 2EHDRC-10P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EHDR, or try a keyword search, such as Terminals and Terminal Blocks
