2EHDRM-04P - Dinkle

Description: PCB Terminal BlocksPCB Connector-Socket 4 Position Pitch : 5.08 mm, 300V, 20A , 500MΩ , -40°C ~ 125°C

Download 2EHDRM-04P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2EHDRM-04P - Dinkle - PCB symbol
click to zoom
PCB Footprints

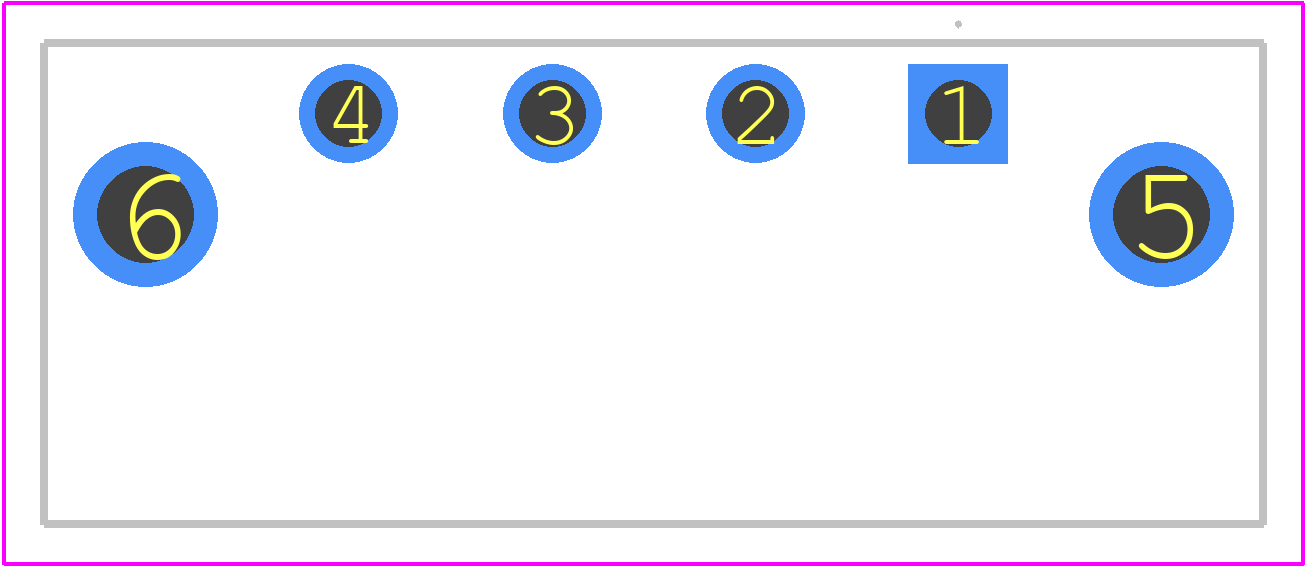

2EHDRM-04P - Dinkle PCB footprint - Other - Other - 2EHDRM-04P-1
click to zoom
3D Models
2EHDRM-04P - Dinkle - 3D model - Other - 2EHDRM-04P-1
click to zoom

2EHDRM-04P Details

  • Manufacturer Part Number:

    2EHDRM-04P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; FIMKO; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2EHDRM-04P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (5-8 in-lbs).
  • Yes, the 2EHDRM-04P relay module can be used with a 3.3V microcontroller, but you'll need to use a level shifter or voltage divider to ensure the relay's input voltage is within the recommended 4-5V range.
  • The maximum switching frequency of the relay is 30 Hz. Exceeding this frequency may reduce the relay's lifespan.
  • The operating temperature range of the 2EHDRM-04P is -40°C to 85°C. While it can tolerate high temperatures, it's essential to ensure proper cooling and ventilation to prevent overheating.
  • The relay module is rated for 250VAC/30VDC, making it suitable for most general-purpose applications. However, for high-voltage applications, you may need to consider additional safety measures or use a relay module with a higher voltage rating.
