2EZ47D5-TP - MCC

Description: Zener Diodes

Download 2EZ47D5-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2EZ47D5-TP - MCC - PCB symbol
click to zoom
PCB Footprints

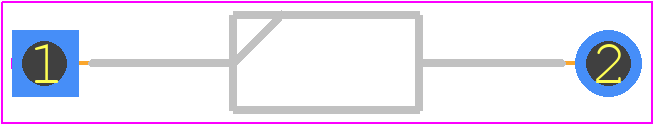

2EZ47D5-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-41.
click to zoom
3D Models
2EZ47D5-TP - MCC - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-41.
click to zoom

2EZ47D5-TP Details

  • Manufacturer Part Number:

    2EZ47D5-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-41

  • Package Description:

    PACKAGE-2

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    5.65

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • Dynamic Impedance-Max:

    40 Ω

  • JEDEC-95 Code:

    DO-41

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Knee Impedance-Max:

    1500 Ω

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    2 W

  • Qualification Status:

    Not Qualified

  • Reference Voltage-Nom:

    47 V

  • Reverse Current-Max:

    0.5 µA

  • Surface Mount:

    NO

  • Technology:

    ZENER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tol-Max:

    5%

  • Working Test Current:

    10.6 mA

2EZ47D5-TP Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the 2EZ47D5-TP is a peak temperature of 260°C (500°F) for 10-15 seconds, with a ramp-up rate of 3-4°C/s (5-7°F/s) and a ramp-down rate of 6-8°C/s (11-14°F/s).
  • While the 2EZ47D5-TP is a fast-switching diode, its switching speed is not suitable for very high-frequency applications (above 100 kHz). It's more suitable for low-to-medium frequency switching applications, such as power supplies, motor control, and audio equipment.
  • The maximum allowable voltage transient for the 2EZ47D5-TP is 10% above the rated voltage (47V) for a duration of 100 ms. Exceeding this limit may cause damage to the diode.
  • Yes, the 2EZ47D5-TP can be used in parallel to increase current handling, but it's essential to ensure that the diodes are matched in terms of their electrical characteristics and that the current sharing is balanced to avoid overheating and premature failure.
  • The storage temperature range for the 2EZ47D5-TP is -40°C to 125°C (-40°F to 257°F). Storage outside this range may affect the diode's reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2EZ47D5-TP Overview

Use the download button to access the 2EZ47D5-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EZ47, or try a keyword search, such as Zener Diodes
