2N3585 - Comset

2N3585 Details

• Manufacturer Part Number:

  2N3585

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• Manufacturer:

  Comset Semiconductor

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  2 A

• Collector-Emitter Voltage-Max:

  300 V

• Configuration:

  SINGLE

• DC Current Gain-Min (hFE):

  25

• Fall Time-Max (tf):

  3000 ns

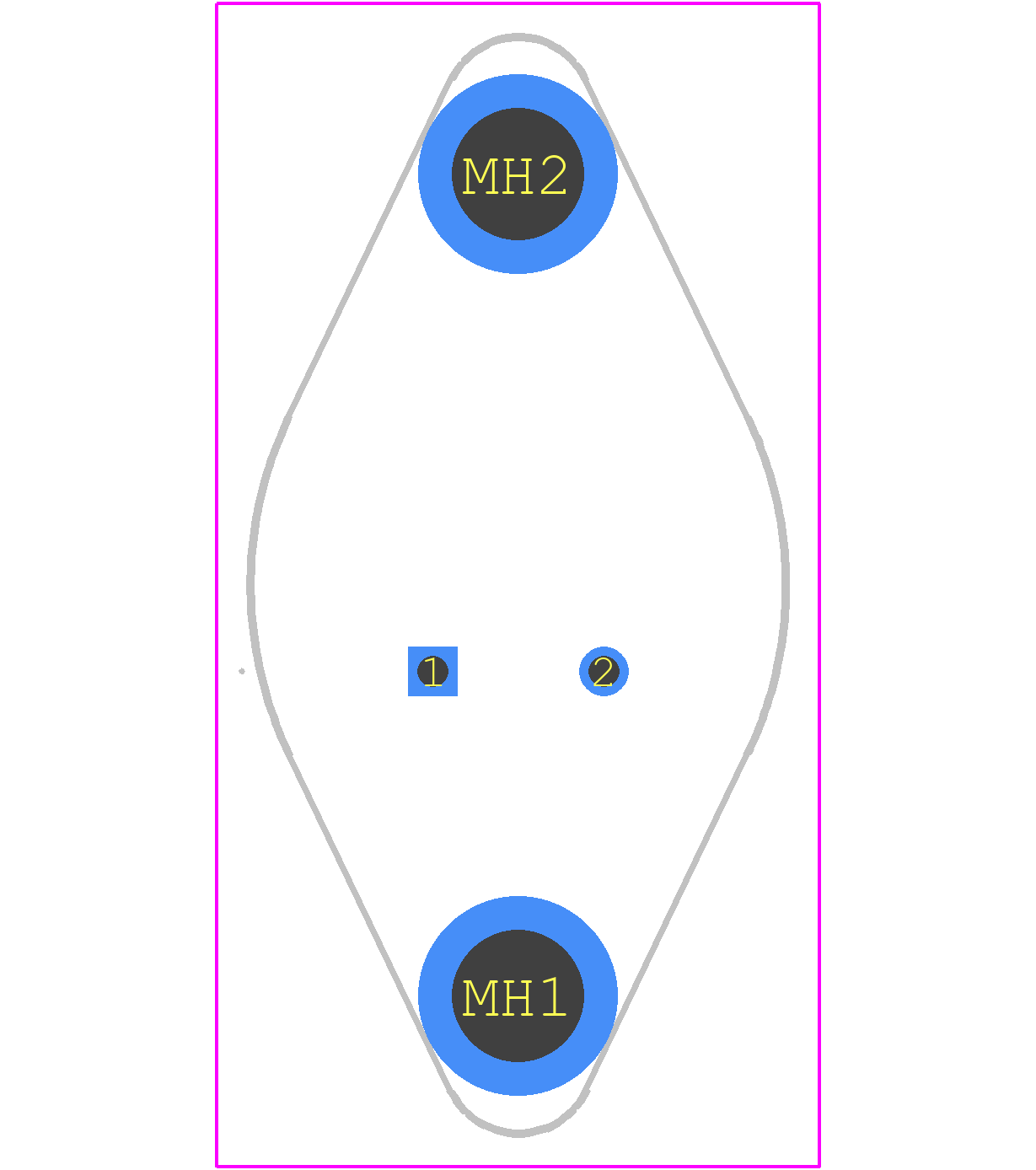

• JEDEC-95 Code:

  TO-66

• JESD-30 Code:

  O-MBFM-P2

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Package Body Material:

  METAL

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  NPN

• Power Dissipation-Max (Abs):

  35 W

• Surface Mount:

  NO

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  10 MHz

• Turn-off Time-Max (toff):

  7000 ns

• Turn-on Time-Max (ton):

  3000 ns

• VCEsat-Max:

  0.75 V
